Engine Mounting On Maintenance Stand: Mounting

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
GC0170013Courtesy of CHRYSLER GROUP, LLC
  1. Remove the seven bolts (3), washer (2) and flexplate (1). DISCARD  the seven flexplate bolts (3).
    GC0164709Courtesy of CHRYSLER GROUP, LLC
  2. Install the maintenance stand mounting bracket (1) on the engine block.

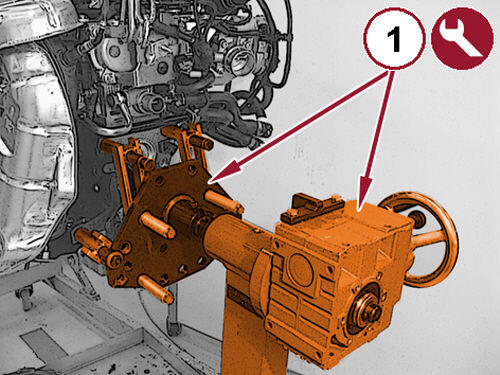

    GC0166133Courtesy of CHRYSLER GROUP, LLC
  3. With the aid of a hydraulic lift, install the engine block and mounting bracket to the maintenance stand (1).
