Engine And Transmission Separation - 2.4L MULTIAIR AWD: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
GC0165740Courtesy of CHRYSLER GROUP, LLC
  1. Remove the fasteners and remove the lower intake manifold support bracket (1).

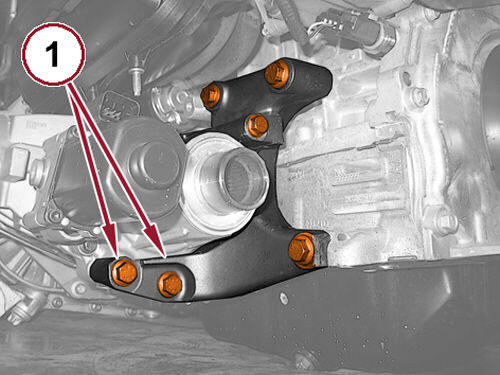

    GC0164725Courtesy of CHRYSLER GROUP, LLC
  2. Remove the bolts and remove the Power Transfer Unit (PTU) support bracket (1).

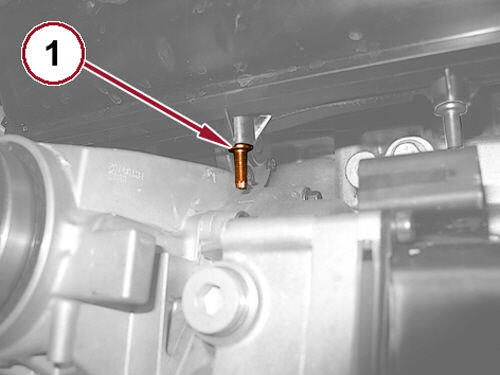

    GC0164677Courtesy of CHRYSLER GROUP, LLC
  3. Remove the stud (1).

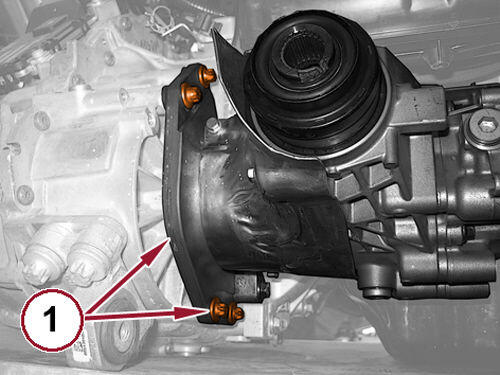

    GC0164685Courtesy of CHRYSLER GROUP, LLC
  4. Remove the bolts and remove the PTU (1) from the transmission.
    GC0164619Courtesy of CHRYSLER GROUP, LLC
  5. Remove the bolt and remove the exhaust pipe support bracket (1).
    GC0171271Courtesy of CHRYSLER GROUP, LLC
  6. Disengage the wire harness retainer (1) from the upper radiator inlet hose at the thermostat housing.
    GC0171629Courtesy of CHRYSLER GROUP, LLC
  7. Loosen the CLIC E®  type clamps using the Pliers, Hose Clamp (special tool #10288, Pliers, Hose Clamp) and remove the upper radiator inlet (2) and lower radiator outlet (1) hoses.
    GC0172043Courtesy of CHRYSLER GROUP, LLC
  8. Loosen the CLIC E®  type clamps using the Pliers, Hose Clamp (special tool #10288, Pliers, Hose Clamp) and remove the engine oil cooler inlet (1) and outlet (2) hoses.
    GC0172072Courtesy of CHRYSLER GROUP, LLC
  9. Disconnect the quick-connect coupling and remove the heater core inlet hose (1) from the thermostat housing.
  10. Loosen the CLIC E®  type clamp using the Pliers, Hose Clamp (special tool #10288, Pliers, Hose Clamp) and remove the heater core outlet hose (2) from the coolant return pipe.
  11. Remove the upstream and downstream oxygen sensors. Refer to SENSOR, OXYGEN, REMOVAL AND INSTALLATION .
    GC0171378Courtesy of CHRYSLER GROUP, LLC
  12. Remove the bolts (2, 3) and the catalytic converter lower support bracket (1).
    GC0156381Courtesy of CHRYSLER GROUP, LLC
  13. Remove the catalytic converter heat shields from the exhaust manifold.
    GC0155619Courtesy of CHRYSLER GROUP, LLC
  14. Remove the exhaust manifold bolts (1). Remove the manifold and DISCARD  the exhaust manifold gasket.
    GC0171533Courtesy of CHRYSLER GROUP, LLC
  15. Remove the bolt (2) retaining the torque converter bolt access cover (1).
    GC0160135Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    There are three pairs of bolts 120° apart attaching the flexplate to the torque converter.

  16. Through the access door opening, remove the bolts (1) holding the flexplate to the torque converter. Rotate the crankshaft to bring each set of bolts into view through the access door.
    GC0171816Courtesy of CHRYSLER GROUP, LLC
  17. Remove the three oil pan to transmission bolts (1).
  18. Affix a chain to the transmission mount bracket to be used as a lifting point.
  19. Using an engine hoist, remove the slack from the lifting chain.
    GC0171937Courtesy of CHRYSLER GROUP, LLC
  20. Remove the left upper transmission to engine bolt (2) and bracket (1).
    GC0171973Courtesy of CHRYSLER GROUP, LLC
  21. Remove the left lower bolt (1) holding the transmission to the engine block.
    GC0171700Courtesy of CHRYSLER GROUP, LLC
  22. Remove the right upper transmission to engine bolt (1).
  23. Remove the upper starter bolt (2).
    GC0171715Courtesy of CHRYSLER GROUP, LLC
  24. Remove the lower starter bolt (1) and the starter (2) from the transmission bellhousing.
    GC0171889Courtesy of CHRYSLER GROUP, LLC
  25. Remove the left engine to transmission bolt (1) and bracket (2).
  26. Using a suitable prying tool, pry the bell housing away from the engine block.
