Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
  3. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION  .
  4. Remove the cylinder head cover. Refer to COVER(S), CYLINDER HEAD, REMOVAL AND INSTALLATION  .
  5. Remove the throttle body. Refer to THROTTLE BODY, REMOVAL AND INSTALLATION .
  6. Drain the cooling system. Refer to DRAINING AND FILLING THE COOLING SYSTEM - 2.4L .
  7. Recover the A/C refrigerant. Refer to R-1234YF REFRIGERANT SYSTEM RECOVERY .
    GC0164330Courtesy of CHRYSLER GROUP, LLC

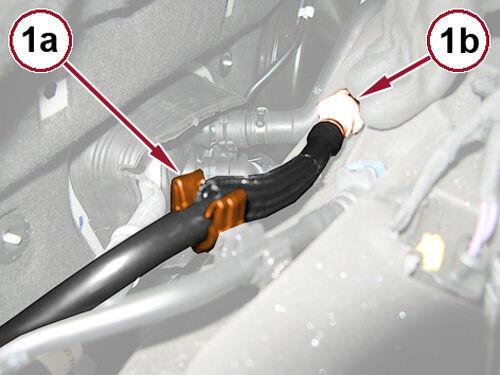

  8. Open the retaining clip (1a) and disconnect the fuel vapor hose quick connect fitting (1b).

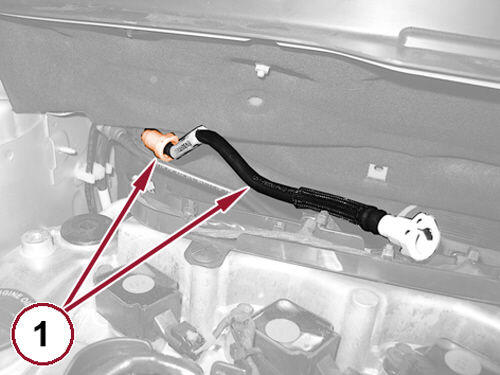

    GC0164090Courtesy of CHRYSLER GROUP, LLC
  9. Disconnect the fuel vapor hose quick connect fitting (1) and remove the fuel vapor hose.
    GC0165537Courtesy of CHRYSLER GROUP, LLC

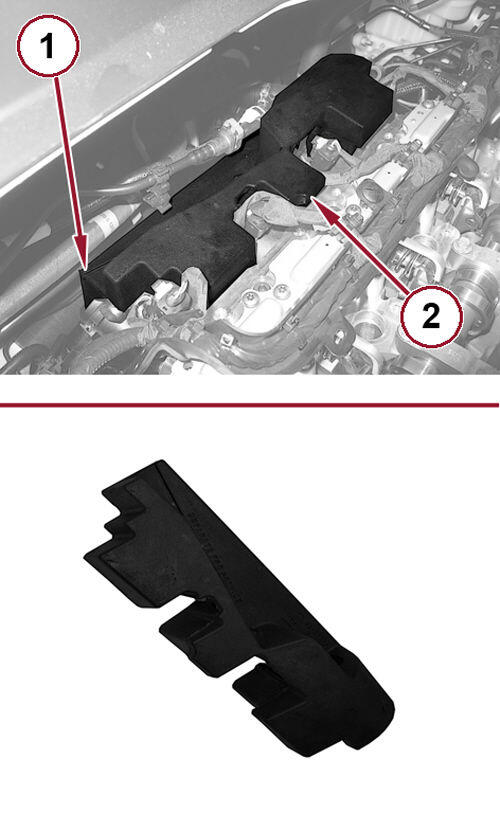

  10. Separate the two edges of the precut sound absorbing panel (1).
  11. Remove the sound absorbing panel (2).
    GC0163777Courtesy of CHRYSLER GROUP, LLC

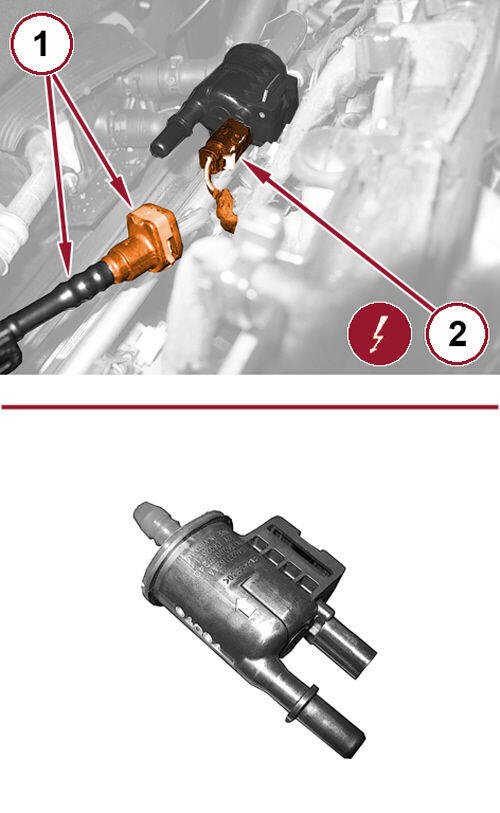

  12. Disconnect the fuel vapor hose quick connect fitting (1).
  13. Disconnect the fuel vapors solenoid wire harness connector (2) and remove fuel vapors solenoid.
    GC0164869Courtesy of CHRYSLER GROUP, LLC

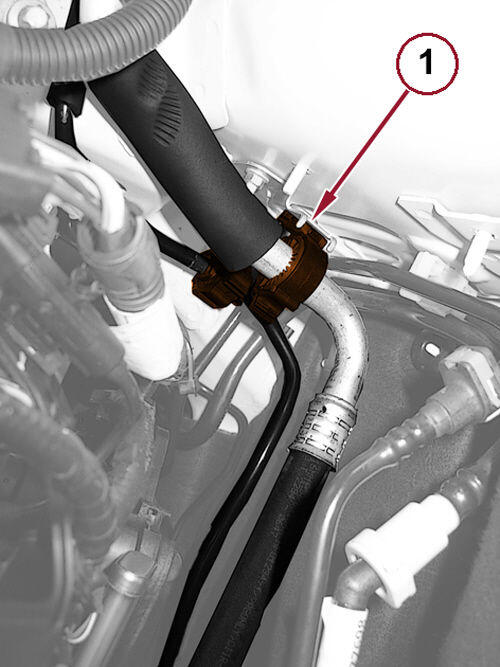

  14. Open the retaining clips and detach the A/C lines (1).
    GC0163080Courtesy of CHRYSLER GROUP, LLC

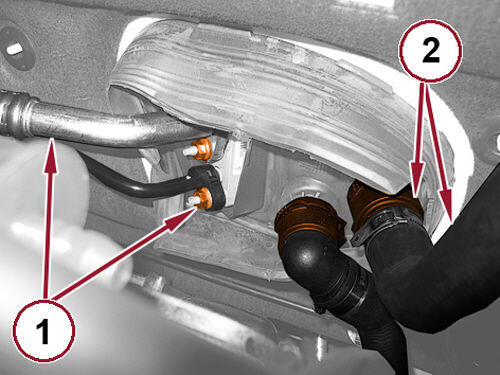

  15. Remove the nuts (1) and disconnect the A/C lines.
  16. Remove the coolant hoses (2) from the heater.
    GC0163287Courtesy of CHRYSLER GROUP, LLC

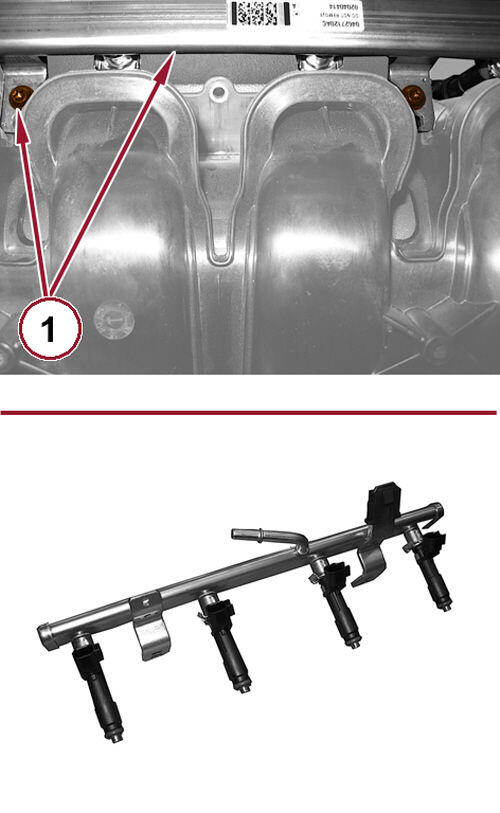

  17. Remove the fuel rail (1) and fuel injectors. Refer to INJECTOR(S), FUEL, REMOVAL AND INSTALLATION .
    GC0164232Courtesy of CHRYSLER GROUP, LLC
  18. Remove the four screws (1) and the intake manifold silencer cover.
    GC0164399Courtesy of CHRYSLER GROUP, LLC

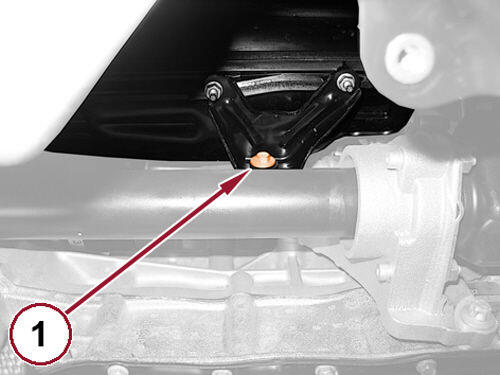

  19. Remove the bolt (1) securing the intake manifold support bracket.
    GC0164031Courtesy of CHRYSLER GROUP, LLC

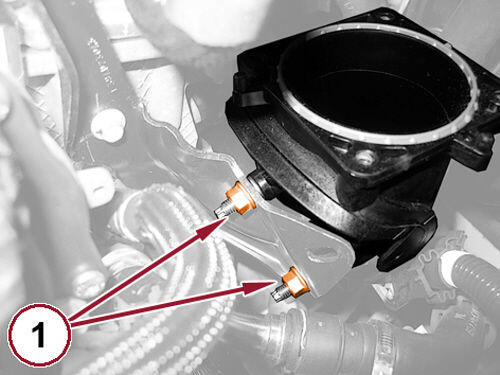

  20. Remove the intake manifold support bracket nuts (1).

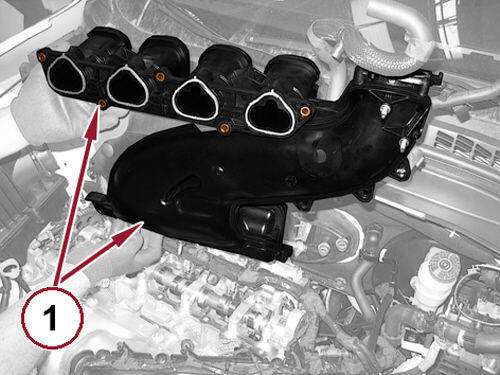

    GC0163125Courtesy of CHRYSLER GROUP, LLC
  21. Remove the fasteners (1) and the intake manifold.
  22. Remove and discard the gasket seals
