Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION  .
  3. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  4. Remove the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .

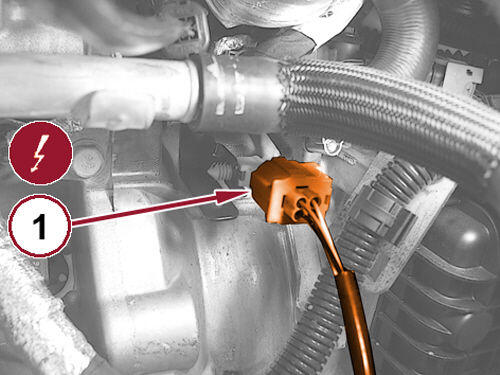

    GC0164196Courtesy of CHRYSLER GROUP, LLC
  5. Disconnect the downstream oxygen sensor wire harness connector (1).

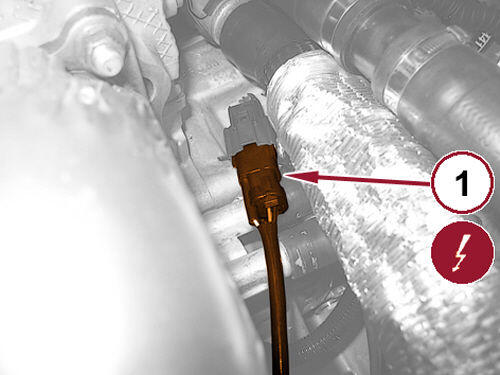

    GC0163547Courtesy of CHRYSLER GROUP, LLC
  6. Disconnect the upstream oxygen sensor wire harness connector (1).

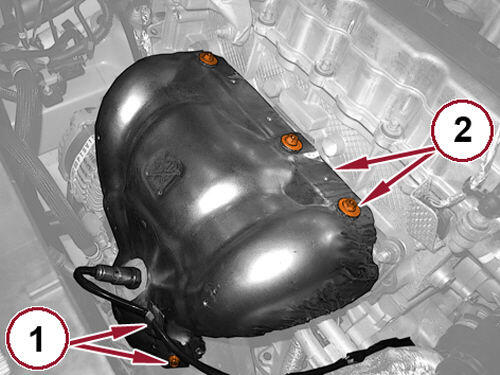

    GC0164419Courtesy of CHRYSLER GROUP, LLC
  7. Disengage the upstream oxygen sensor wire harness from the retainer (1) and remove the bolt and bracket.
  8. Remove the nuts (2) and the upper heat shield from the exhaust manifold.

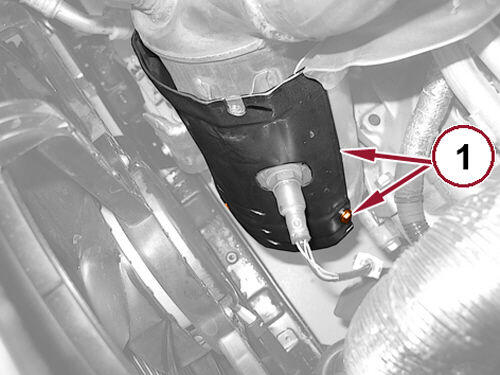

    GC0163437Courtesy of CHRYSLER GROUP, LLC
  9. Remove the bolts (1) and the lower heat shield.
    GC0163333Courtesy of CHRYSLER GROUP, LLC
  10. Remove the bolt (1) securing the exhaust pipe to the transmission bracket.
  11. Remove the nuts (2) and disconnect the exhaust pipe from the catalyst.
  12. Remove and discard the gasket.
    GC0163813Courtesy of CHRYSLER GROUP, LLC
  13. Remove the bolts (1) and the catalytic converter support bracket.

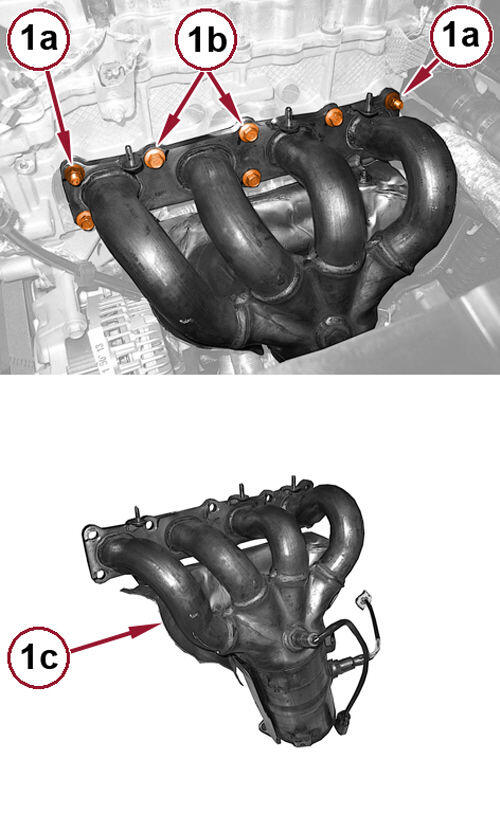

    GC0166137Courtesy of CHRYSLER GROUP, LLC
  14. Remove the nuts (1a) and the bolts (1b) and the exhaust manifold catalyst (1c).
  15. Remove and discard the manifold gasket.
