Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

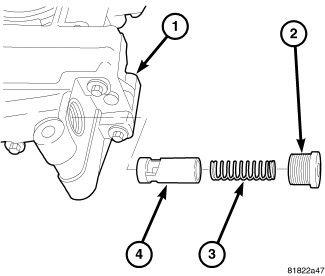

GC0121337Courtesy of CHRYSLER GROUP, LLC
  1. Remove the oil pan. Refer to PAN, OIL, REMOVAL AND INSTALLATION  .
  2. Remove the pressure regulating valve cap (2).
  3. Remove the pressure regulating valve spring (3) and valve (4).
