Valve, Oil Pressure Relief: Inspection

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

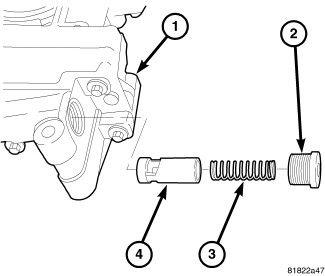

GC0121338Courtesy of CHRYSLER GROUP, LLC
  1. Inspect the pressure relief valve (4) for scoring, gouging, or debris.
  2. Inspect the pressure relief valve bore in the pump for scoring, gouging, or debris.
  3. If the pressure relief valve or pump bore is damaged, install a new balance shaft/oil pump assembly.
