Description And Operation: Description
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

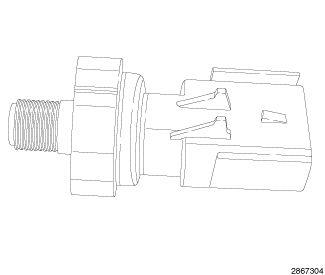

The oil pressure sensor is located on the right side of the engine block. The sensor screws into the engines main oil gallery.
The oil pressure sensor is a silicon based sensing unit that measures the pressure of the engine oil.
The oil pressure sensor is a linear sensor; as pressure changes, voltage changes proportionately and returns a voltage signal to the Powertrain Control Module (PCM) that reflects oil pressure.
