Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the right front tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
  3. Remove the right front wheelhouse splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .
  4. Remove the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
  5. Drain the engine oil and remove the oil filter. Refer to FILTER, ENGINE OIL, REMOVAL AND INSTALLATION  .
    GC0163103Courtesy of CHRYSLER GROUP, LLC

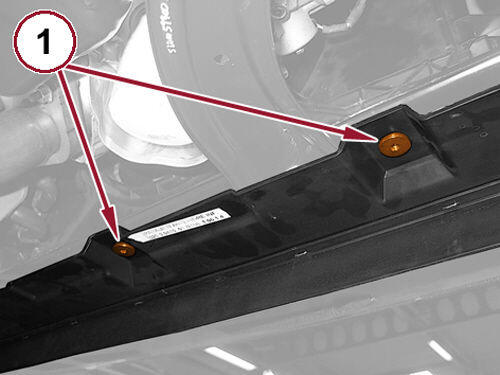

  6. Remove the bolts (1) securing the front fascia to the front bumper.
    GC0162987Courtesy of CHRYSLER GROUP, LLC

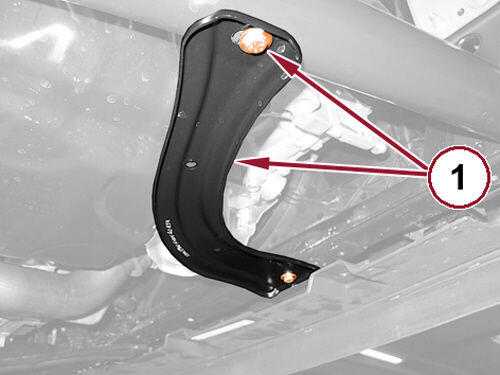

  7. Remove the bolts (1) and the lower load beam reinforcement bracket.
    GC0163751Courtesy of CHRYSLER GROUP, LLC

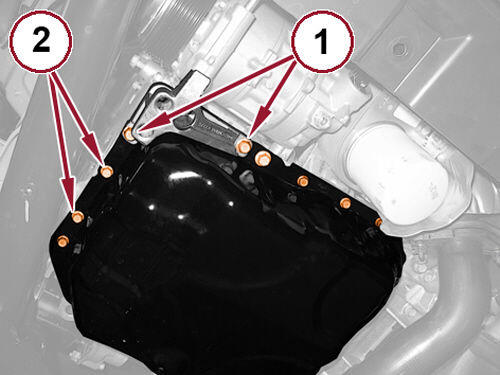

  8. Remove the bolts (1) and the lower A/C compressor mounting bracket.
  9. Remove the bolts (2) securing oil pan.
    GC0165927Courtesy of CHRYSLER GROUP, LLC

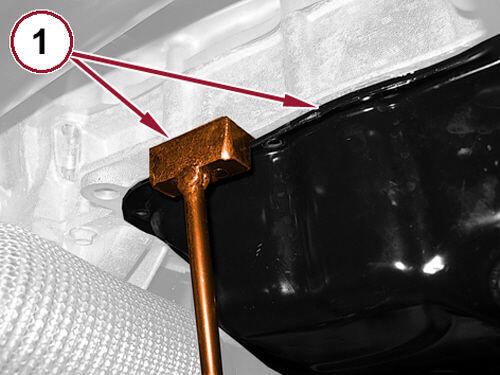

  10. Using the 1870718000 tool (1) to loosen the seal and remove the oil pan from the engine.
  11. Remove all residual sealant from the oil pan and engine block.
