Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the engine and transmission from the vehicle. Refer to REMOVAL AND INSTALLATION  .
  3. Remove the transmission from the engine. Refer to REMOVAL AND INSTALLATION  .

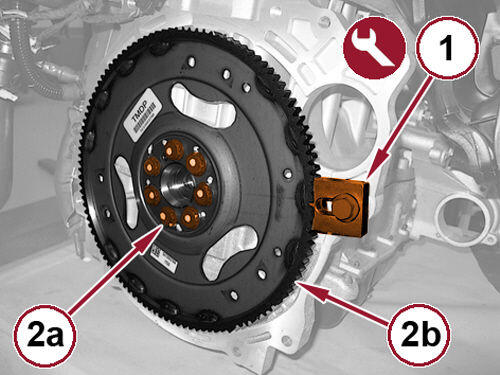

    GC0165895Courtesy of CHRYSLER GROUP, LLC
  4. Fit the 1860741000 (EMEA) flywheel stop tool (1).
  5. Remove the bolts (2a) and remove the flywheel (2b) with spacer.
  6. Remove the 1860741000 (EMEA) flywheel stop tool.

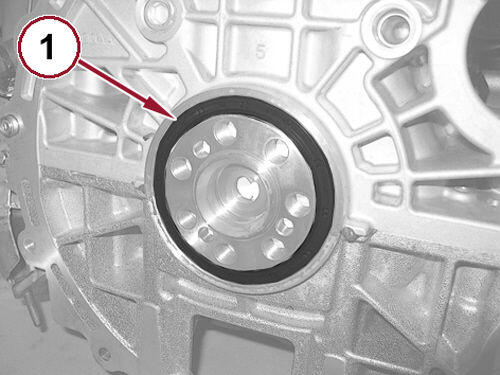

    GC0163527Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Be careful not to damage the oil seal seat during its removal.

  7. Remove the crankshaft oil seal (1), flywheel side.
