Removal And Installation: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

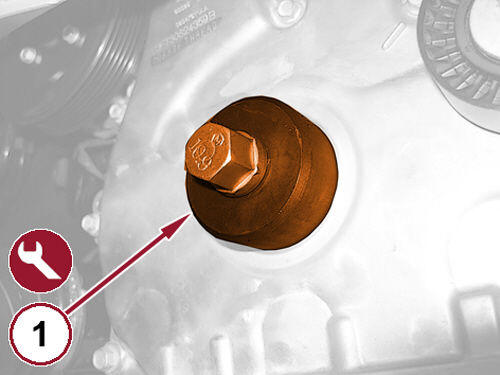

GC0165243Courtesy of CHRYSLER GROUP, LLC
  1. Using the (special tool #9506, Installer, Oil Seal) (1), Install the NEW  front crankshaft oil seal (1) onto the front cover.
  2. Install the vibration damper. Refer to DAMPER, VIBRATION, REMOVAL AND INSTALLATION  .
