Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the right front tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
  3. Remove the right front wheelhouse splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .
  4. Remove the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION .

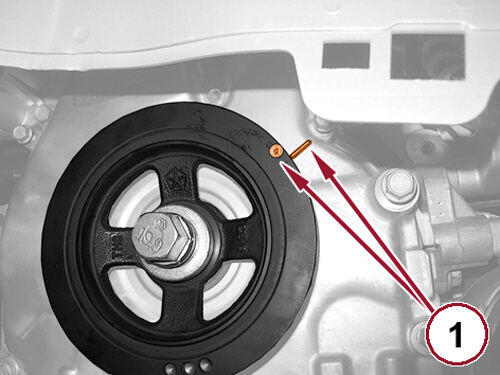

    GC0163574Courtesy of CHRYSLER GROUP, LLC
  5. Turn the vibration damper clockwise to align the timing marks (1).
    GC0164247Courtesy of CHRYSLER GROUP, LLC
  6. Using the (special tool #9707, Holder, Vibration Damper) (1a), remove the bolt (1b) and the vibration damper (1c).
