Description And Operation
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

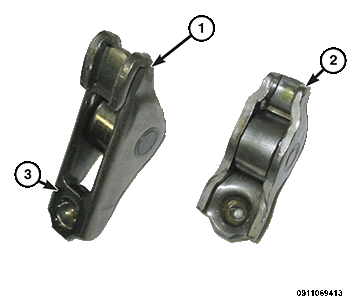

- Both the intake (1) and exhaust (2) rocker arms are steel stampings with an integral roller bearing.
- The intake valve rocker arm (1) has a spring clip (3) to help hold the rocker arm in position on the ball socket when removing or installing the variable valve actuation assembly (VVAA).
- Both the intake (1) and exhaust (2) rocker arms incorporate a 0.5 mm oil hole for roller and camshaft lubrication.
