Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the engine cover and the clean air hose. Refer to HOSE, CLEAN AIR, REMOVAL AND INSTALLATION .
    GC0165500Courtesy of CHRYSLER GROUP, LLC
  3. Remove the hose (1) from the Positive Crankcase Ventilation (PCV) valve.
    GC0171292Courtesy of CHRYSLER GROUP, LLC
  4. Remove the ignition coils. Refer to COIL, IGNITION, REMOVAL AND INSTALLATION .

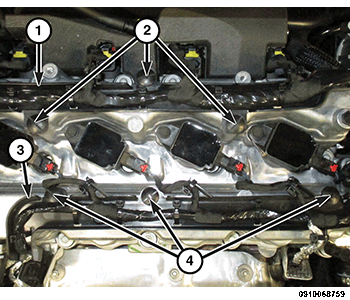

  5. Remove the three wire harness tray retainers (2) from the intake side of the cylinder head cover and reposition the wire harness tray (1).
  6. Remove the three wire harness tray retainers (4) from the exhaust side of the cylinder head cover and reposition the wire harness tray (3).
    GC0171928Courtesy of CHRYSLER GROUP, LLC
  7. Clean the cylinder head cover prior to removal.

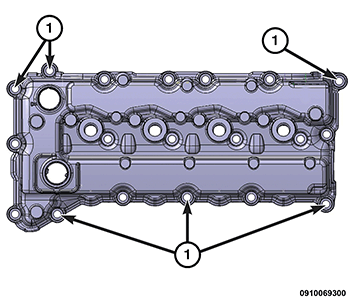

  8. Remove thirteen bolts, six stud-bolts (1) and the cylinder head cover.
    GC0171357Courtesy of CHRYSLER GROUP, LLC

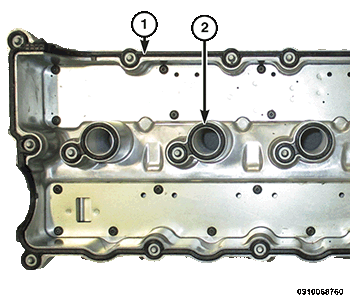

  9. Remove and discard the outer cylinder head cover gasket (1) and the tube gaskets (2) from the cover.
    GC0180756Courtesy of CHRYSLER GROUP, LLC
  10. If required, remove the engine cover ball studs (1) and the PCV valve (2).
    GC0180783Courtesy of CHRYSLER GROUP, LLC

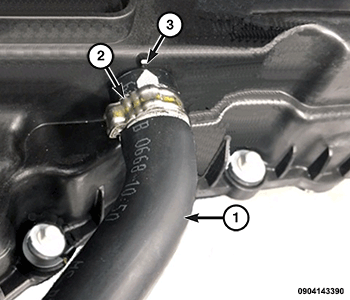

  11. If required, loosen the CLIC E®  type clamp (2) using the (special tool #10288, Pliers, Hose Clamp) and remove the make up air hose (1) from the cylinder head cover fitting

    Refer to the appropriate service information .
