Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION  .
  3. Remove the air cleaner assembly. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION  .
  4. Remove the Powertrain Control Module (PCM). Refer to MODULE, POWERTRAIN CONTROL (PCM), REMOVAL AND INSTALLATION .
  5. Remove the vacuum pump. Refer to PUMP, VACUUM, REMOVAL AND INSTALLATION .
  6. Remove the cylinder head cover. Refer to COVER(S), CYLINDER HEAD, REMOVAL AND INSTALLATION  .
  7. Remove the timing chain. Refer to CHAIN AND SPROCKETS, TIMING, REMOVAL AND INSTALLATION  .

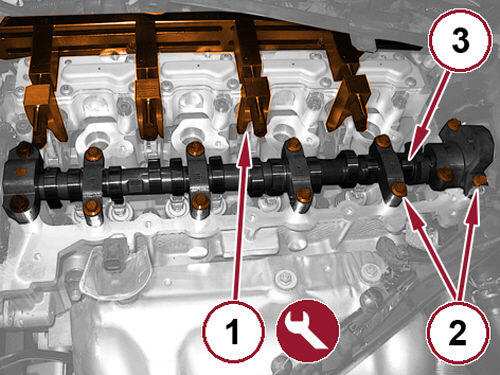

    GC0163096Courtesy of CHRYSLER GROUP, LLC
  8. Install the (special tool #10259B, Compressor, MultiAir® Spring) on the MULTIAIR actuator (1).
  9. Remove the camshaft cap to cylinder head bolts (2), and remove the camshaft caps.
  10. Remove the camshaft (3) and oil seal.
