Camshaft, Engine: Inspection

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

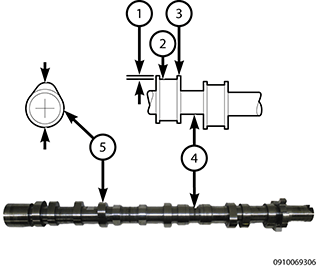

GC0169589Courtesy of CHRYSLER GROUP, LLC
  1. Inspect the camshaft bearing journals (4) for damage and binding. If the journals are binding, check the cylinder head for damage. Also check the oil supply ports for obstructions.
  2. Check the surface of the cam lobes (5) for abnormal wear (1). Measure and compare the unworn area (3) to the worn area (2). Replace the camshaft if it is not within specification. Refer to SPECIFICATIONS  .
