Removal And Installation: Removal
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the air cleaner. Refer to
AIR CLEANER, REMOVAL AND INSTALLATION
.
- Disengage the wire harness retainer (2) from the air cleaner body.
- Lift the air cleaner body (1) straight up to disengage the ball stud mounts from the rubber mount sockets.
- Release the tabs (3) from the intake air tube and remove the air cleaner body (1) from the vehicle.
- If required, recover the rubber mount socket from the bottom of the air cleaner body and reinstall it to the right engine mount (1).NOTE:
Follow the remaining steps to remove the intake air tube from the vehicle, if required.
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Remove the right front tire and wheel assembly. Refer to REMOVAL AND INSTALLATION
.

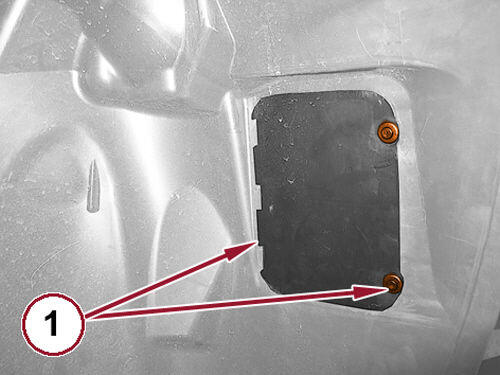

- Remove the retainers and the access panel (1).

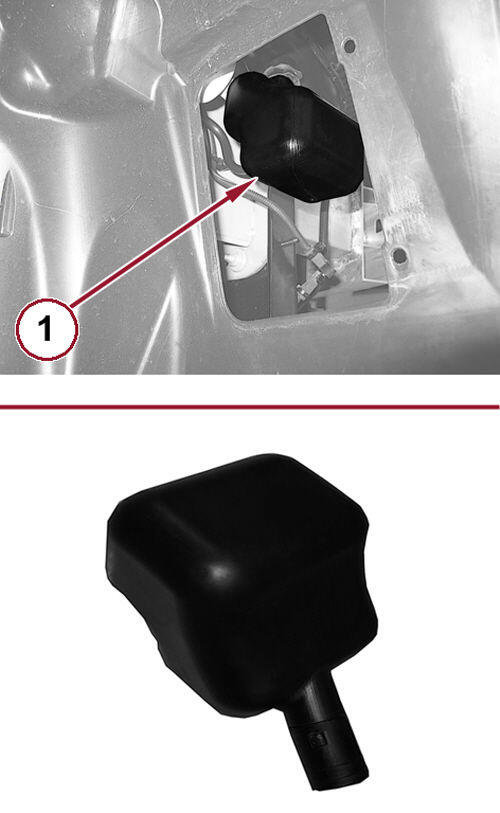

- Rotate the resonator (1) 1/4 turn and remove the resonator from the intake air tube.

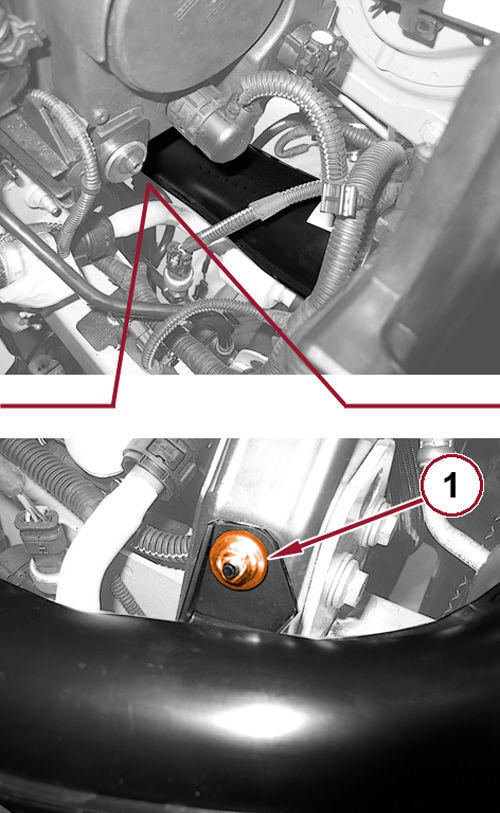

- Remove the nut (1) securing the intake air tube and remove the air tube from the vehicle.
