Removal And Installation: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the nut securing the intake air tube and securely tighten.
  2. Install and attach the resonator.
  3. Install the access panel and the retainers.
  4. Install the right front tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
  5. Remove support and lower the vehicle.
  6. GC0171625Courtesy of CHRYSLER GROUP, LLC

    If required, recover the rubber mount socket (1) from the bottom of the air cleaner body and reinstall it to the right engine mount.

  7. Lubricate the air cleaner body rubber mount sockets with Mopar® Rubber Bushing Installation Lube.

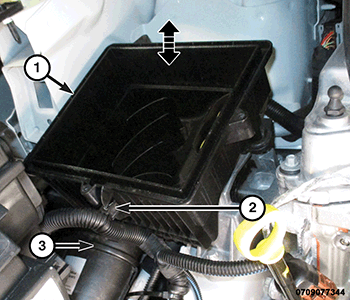

    GC0174559Courtesy of CHRYSLER GROUP, LLC
  8. Align the air cleaner body (1) to the rubber mount sockets and press firmly downwards.
  9. Engage the air inlet tube (3) to the air cleaner body.
  10. Engage the wire harness retainer (2) to the air cleaner body.
  11. Install the air cleaner and air cleaner body cover. Refer to AIR CLEANER, REMOVAL AND INSTALLATION  .
