Removal And Installation: Removal
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the engine cover. Refer to
COVER, ENGINE, REMOVAL AND INSTALLATION
.

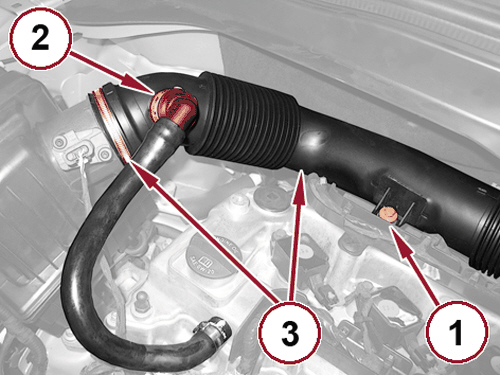

- Remove the fastener securing the air tube to the throttle body (1).
- Disconnect the engine oil vapor hose quick coupling (2).
- Loosen the hose clamp and disconnect the air tubing (3).

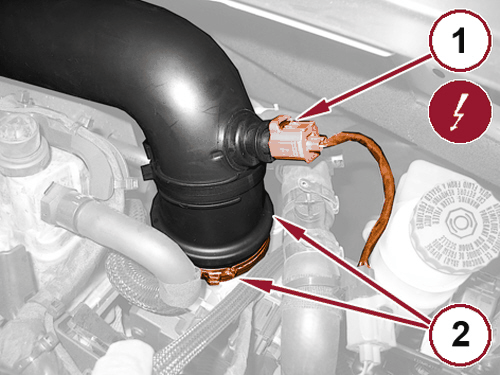

- Disconnect the wire harness connector from the air temperature sensor (1).
- Loosen clamp and remove the hose from the air filter to the throttle body (2).

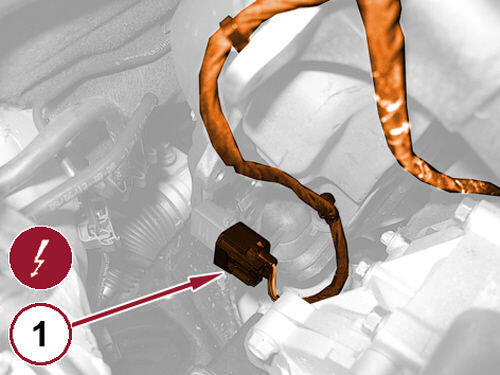

- Disconnect the wire harness connector (1) from the manifold air pressure sensor.

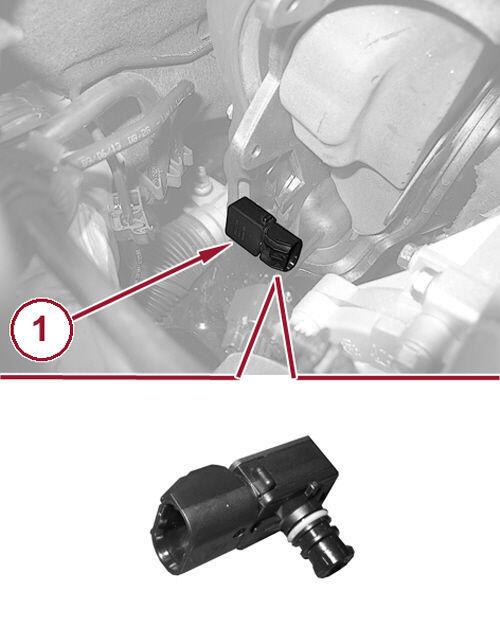

- Rotate 90° counter clockwise and remove the sensor (1).
