Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .

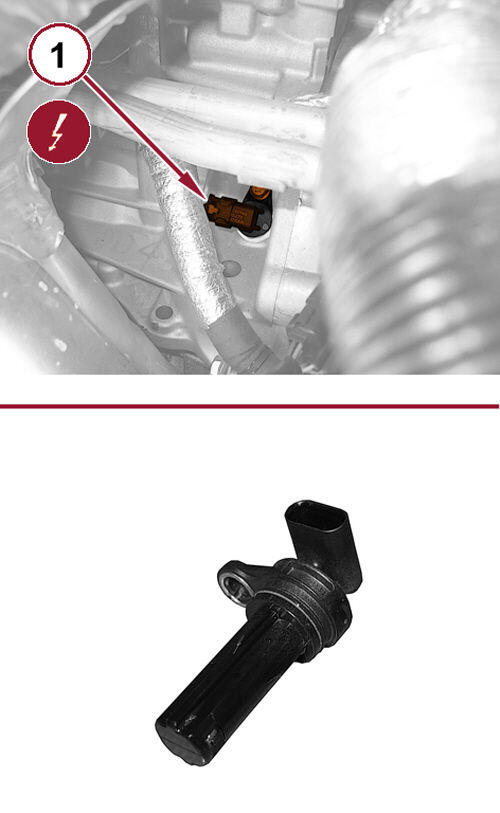

    GC0163819Courtesy of CHRYSLER GROUP, LLC
  2. Disconnect the crank sensor (1) electrical connection, loosen the screw and remove the crank sensor.
