Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .

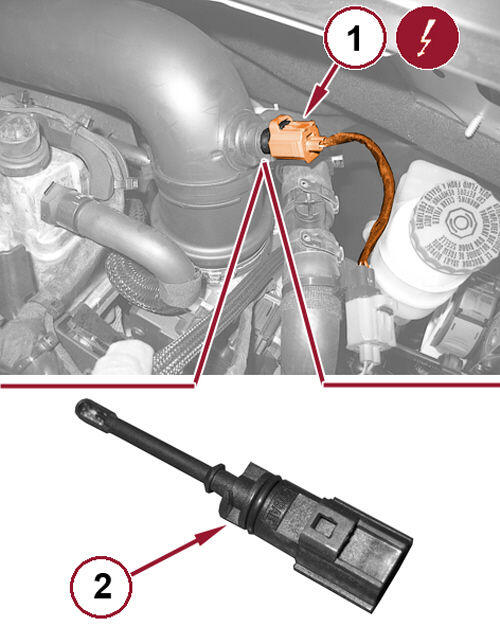

    GC0163254Courtesy of CHRYSLER GROUP, LLC
  2. Disconnect the electrical connector (1) from the intake air temperature sensor (2).
  3. Rotate the intake air temperature sensor 1/4 turn counter clockwise and remove the sensor from the clean air hose.
  4. The sensor O-ring seal can be reused if not damaged.
