Installation - Front Fuel Delivery Line - 2.4L
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

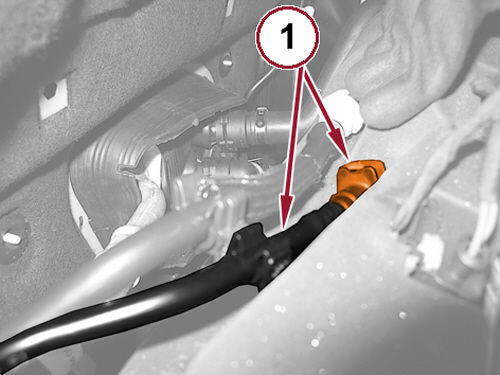

- Position the front fuel delivery line to the engine and connect the quick coupling (1).

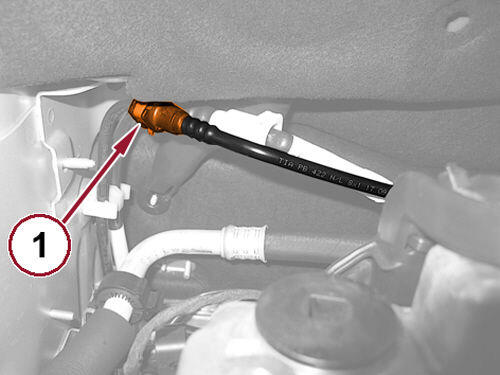

- Connect the quick coupling (1) for the right end of the front fuel delivery line.

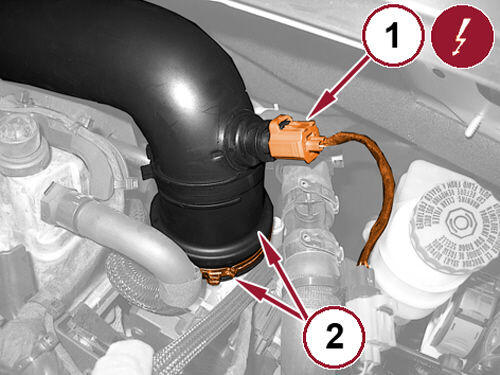

- Connect the clean air hose (2) to the throttle body and tighten the clamp (2) securely.
- Connect the wire harness connector (1) to the inlet air temperature sensor.

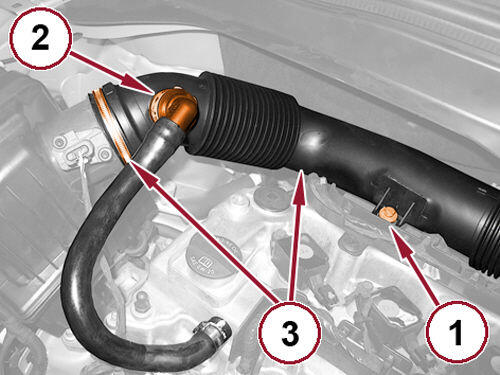

- Connect the clean air hose (3) to the air cleaner body cover and tighten the clamp (3) securely.
- Connect the engine oil vapor hose quick coupling (2).
- Install the bolt (1) for the clean air hose which goes between the air cleaner body cover and the throttle body.
- Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
