Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

In case of replacement of the throttle body, connect the diagnosis tool, enter "actuators" and execute the self-learning procedure.

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the turbocharger to throttle body air outlet pipe. Refer to COOLER AND HOSES, CHARGE AIR, REMOVAL AND INSTALLATION .
    G00588864Courtesy of CHRYSLER GROUP, LLC

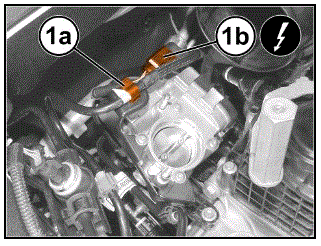

  3. Remove wire harness from the retaining clip (1a).
  4. Disconnect the wire harness connector (1b) from the throttle body.
    GC0208068Courtesy of CHRYSLER GROUP, LLC
  5. Remove the screws (1a) and remove the throttle body (1b).
  6. Remove the gasket.
