Removal And Installation: Removal
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle
Refer to HOISTING, STANDARD PROCEDURE .
- Remove the right rear splash shield. Refer to SHIELD, SPLASH, REAR WHEELHOUSE, REMOVAL
.

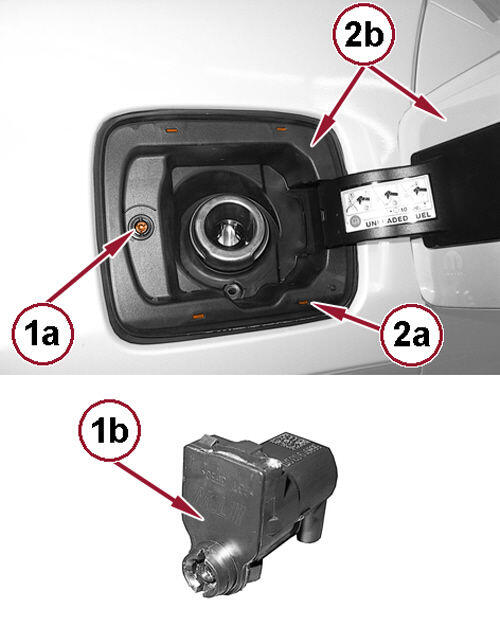

- Rotate the screw (1a) 90° and remove the door retention device (1b).
- Disengage the clips (2a) and remove the fuel door (2b).

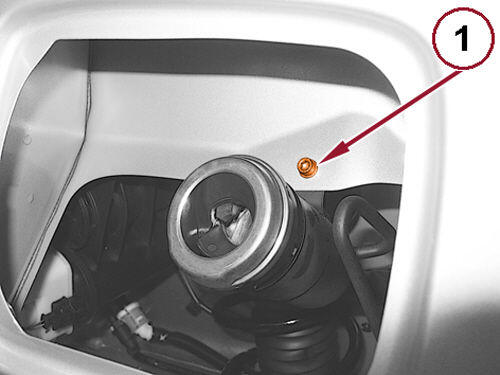

- Remove the fuel filler tube retaining screw (1).
- Loosen the clamp and disconnect the hose from the fuel filler tube (1).

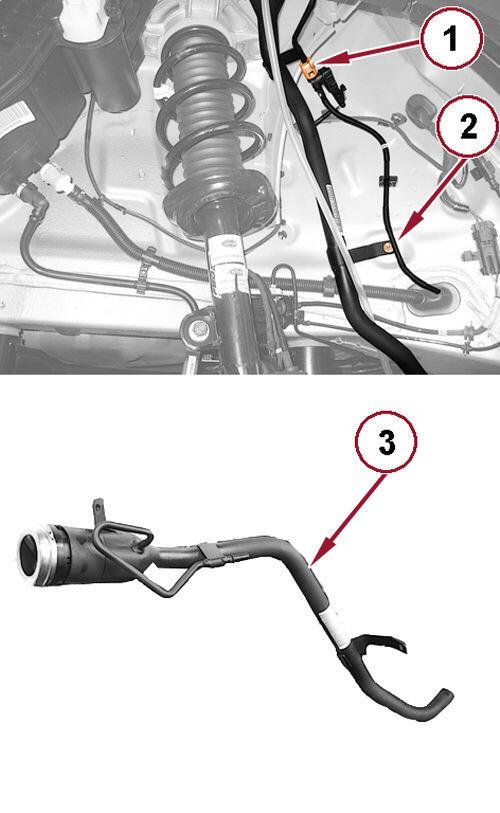

- Disconnect the fuel vapor line quick connector (1).
- Remove the retaining nut (2), securing the fuel filler tube to the body.
- Remove the fuel filler tube (3).
