Removal And Installation: Installation
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
- Lubricate the thread and the tip of the sensor with clean engine oil.

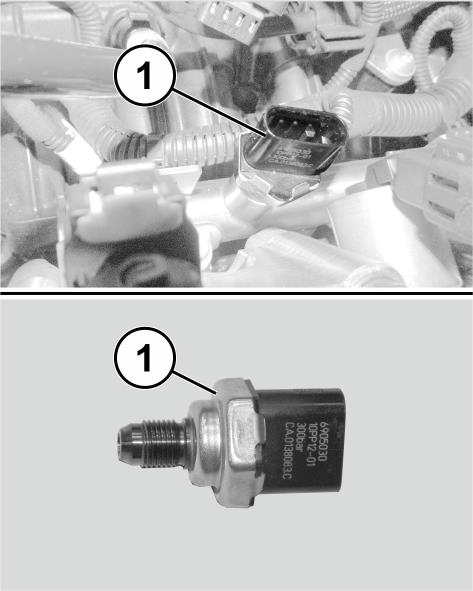

- Install the fuel pressure sensor (1) and tighten to the proper specification. Refer to TORQUE SPECIFICATION
.

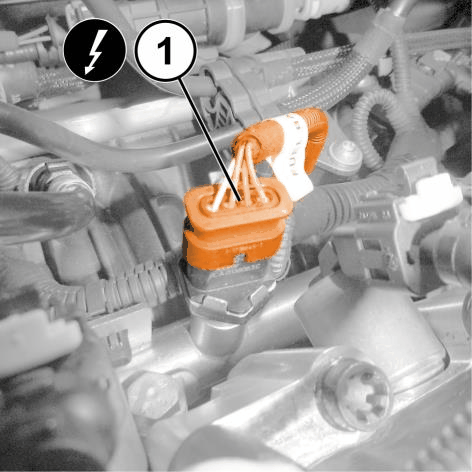

- Connect and lock the fuel pressure sensor wire harness connector (1).
- Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
- Check the high pressure fuel system for leaks. Refer to HIGH PRESSURE FUEL SYSTEM LEAK TEST .
