Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fuel pump module. Refer to MODULE, FUEL PUMP, REMOVAL  .
    GC0190273Courtesy of CHRYSLER GROUP, LLC

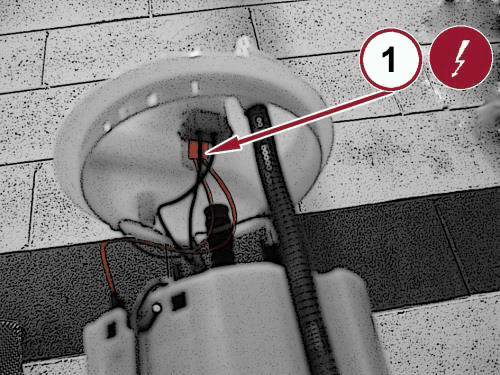

  2. Disconnect the wire harness connector (1) for the fuel level sending unit.
    GC0189150Courtesy of CHRYSLER GROUP, LLC

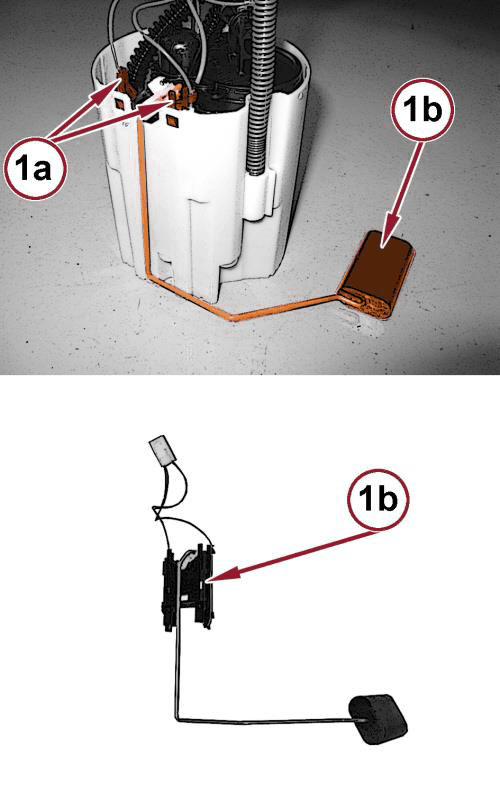

  3. Press the top of the clips (1a) inwards and then lift up the fuel level sensor (1b - 2nd illustration) complete with float and remove it.
