Description And Operation
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of CHRYSLER GROUP, LLC
|

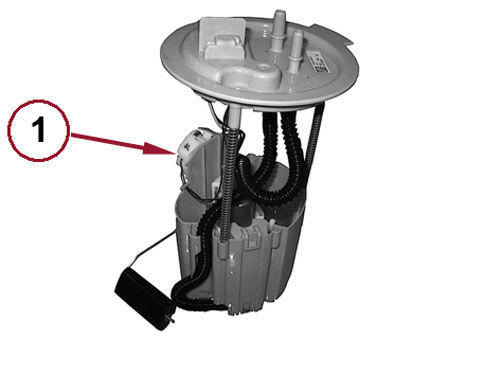

The fuel gauge sending unit (fuel level sensor) (1) is attached to the fuel pump module. The sending unit consists of a float, an arm, and a variable resistor.
