Removal And Installation: Removal
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

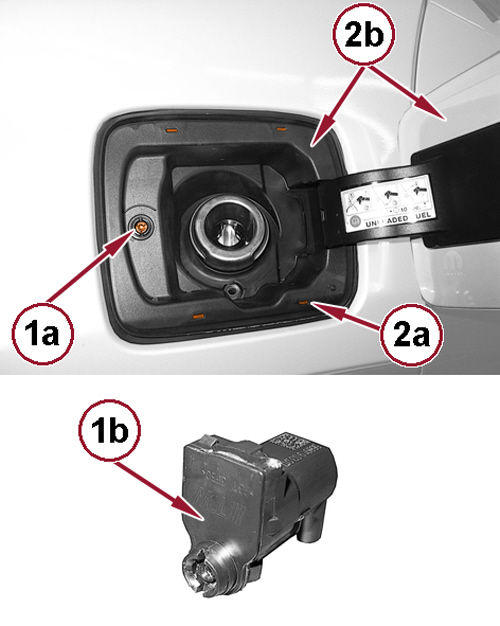

- Rotate the screw (1a) 90° and remove the device for retaining the door (1b).
- Detach the clips (2a) and remove the fuel fill door (2b).

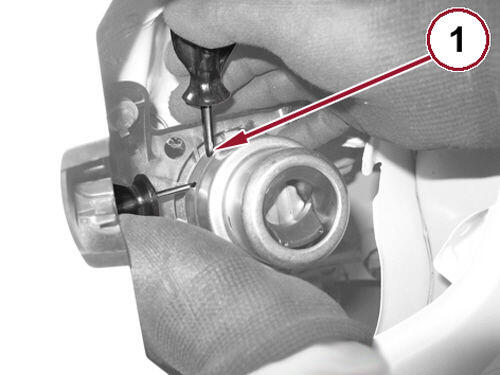

- Working with suitable screwdriver, lift the four retaining clips of the capless fuel fill receptacle (1).
- With the tool unseat capless fuel fill receptacle.
- Remove the capless fuel fill receptacle to replace.
