Removal And Installation: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a NEW  O-ring, supplied with the new capless fuel fill receptacle.
    NOTE:

    Make sure that the O-ring is properly positioned in the throat of the fuel fill tube.

  2. Place the new capless fuel fill receptacle in its seat, aligning the groove with the tooth of the fuel fill tube.
    GC0164381Courtesy of CHRYSLER GROUP, LLC

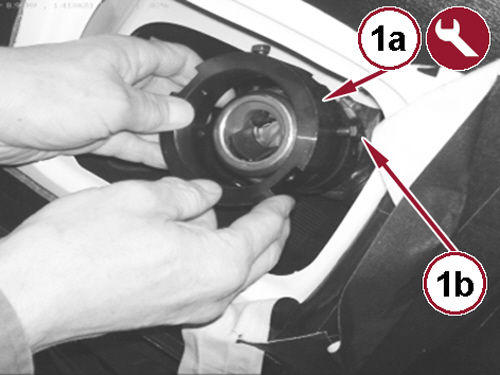

  3. Place the ring (1a) of the installation tool (2000039800) so that the screws (1b) coincide with the four fastening clips of the capless fuel fill receptacle.
    GC0163142Courtesy of CHRYSLER GROUP, LLC

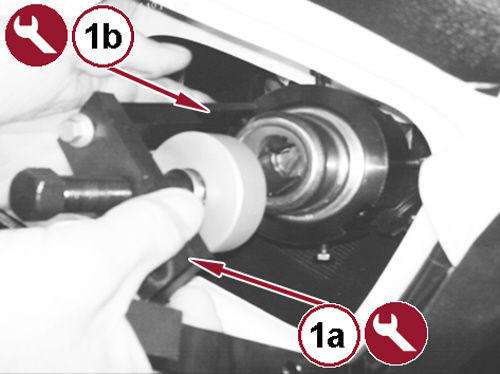

  4. Prepare the installation tool (2000042900) (1a) and (1b) as shown.
    GC0163839Courtesy of CHRYSLER GROUP, LLC

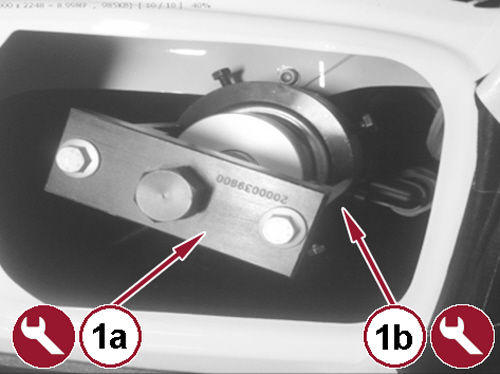

  5. Position the tools (1a) and (1b) as shown.
    GC0165430Courtesy of CHRYSLER GROUP, LLC

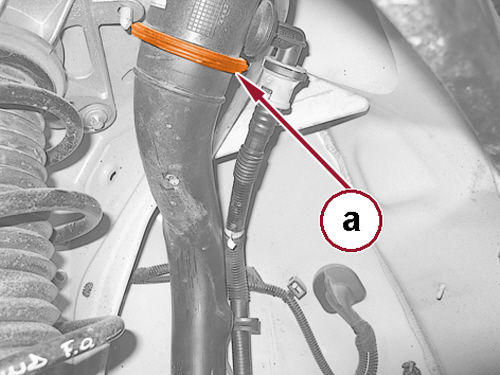

  6. Check that the jaws have engaged the ring and the collar (a) of the fuel fill tube.
    GC0163069Courtesy of CHRYSLER GROUP, LLC

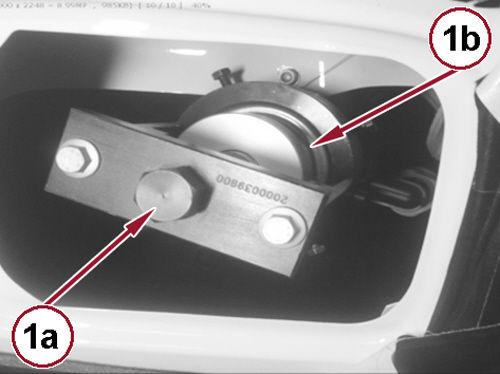

  7. Tighten the screw (1a) to engage the capless fuel fill receptacle (1b) on the collar of the fuel fill tube.
    GC0163426Courtesy of CHRYSLER GROUP, LLC

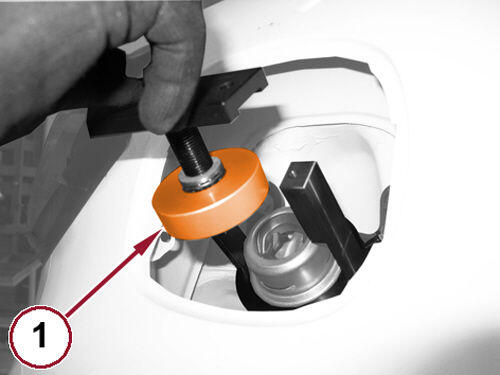

  8. Unscrew the screws and remove the driver shown in the figure (1).
  9. Tighten the screws into the rings to crush the four fasteners.
  10. Remove the tools and verify that the four pegs of the capless fuel fill receptacle are properly installed.
  11. Install the fuel fill door, engaging the retaining clips.
  12. Install the fuel door retaining device and rotate the screw 90°.
