Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

Perform the fuel pressure release procedure. Refer to FUEL SYSTEM PRESSURE RELEASE .
Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
Remove the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC
Thoroughly clean the area around the fuel line nuts to prevent contaminants from entering the fuel system.

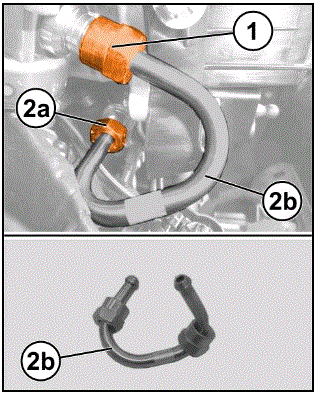

Loosen the fuel line nuts (1, 2a) and remove the high pressure fuel line (2b).
NOTE:
The high pressure fuel line can be reused if the injection pump and fuel rail are being reused, otherwise the high pressure fuel line must be discarded and replaced.

Courtesy of CHRYSLER GROUP, LLC

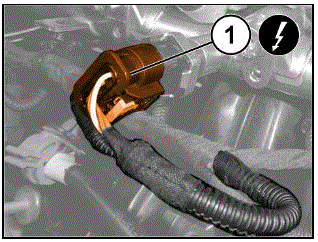

Unlock and disconnect the fuel pressure sensor wire harness connector (1).

Courtesy of CHRYSLER GROUP, LLC

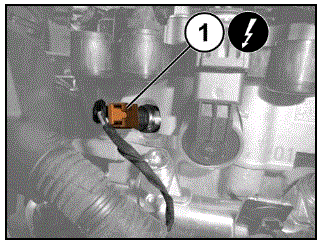

Disconnect the oil temperature sensor wire harness connector (1).

Courtesy of CHRYSLER GROUP, LLC

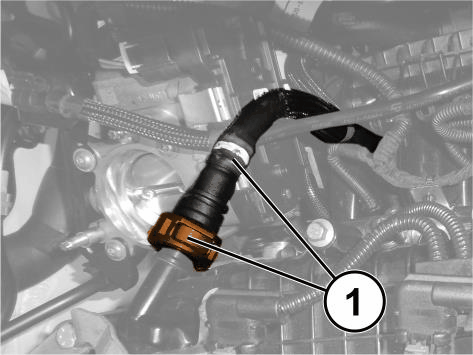

Disconnect the oil vapor line (1) from cam cover and position aside.

Courtesy of CHRYSLER GROUP, LLC
Remove the fuel rail bolts (1a) from the fuel rail (1b). Loosen the outer two bolts before the inner two bolts. DISCARD the fuel rail bolts, they can not be reused.

Courtesy of CHRYSLER GROUP, LLC
Unlock and disconnect the fuel injector wire harness connectors (1).
Remove the fuel rail complete with fuel injectors and fuel pressure sensor.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
The fuel injectors are not fastened to the fuel rail.

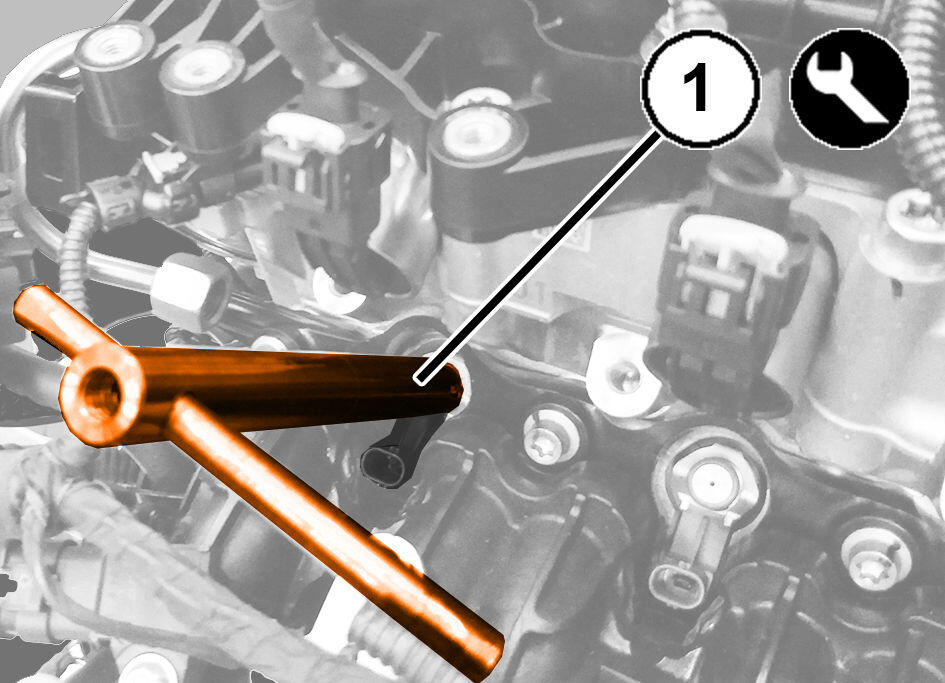

If one or more injectors should remain in the cylinder head, remove them using the (special tool #2066100140, Remover, Fuel Injector), as shown in the figure.
NOTE:
Thoroughly clean the tool prior to use to prevent contaminants from entering the fuel system.

Courtesy of CHRYSLER GROUP, LLC

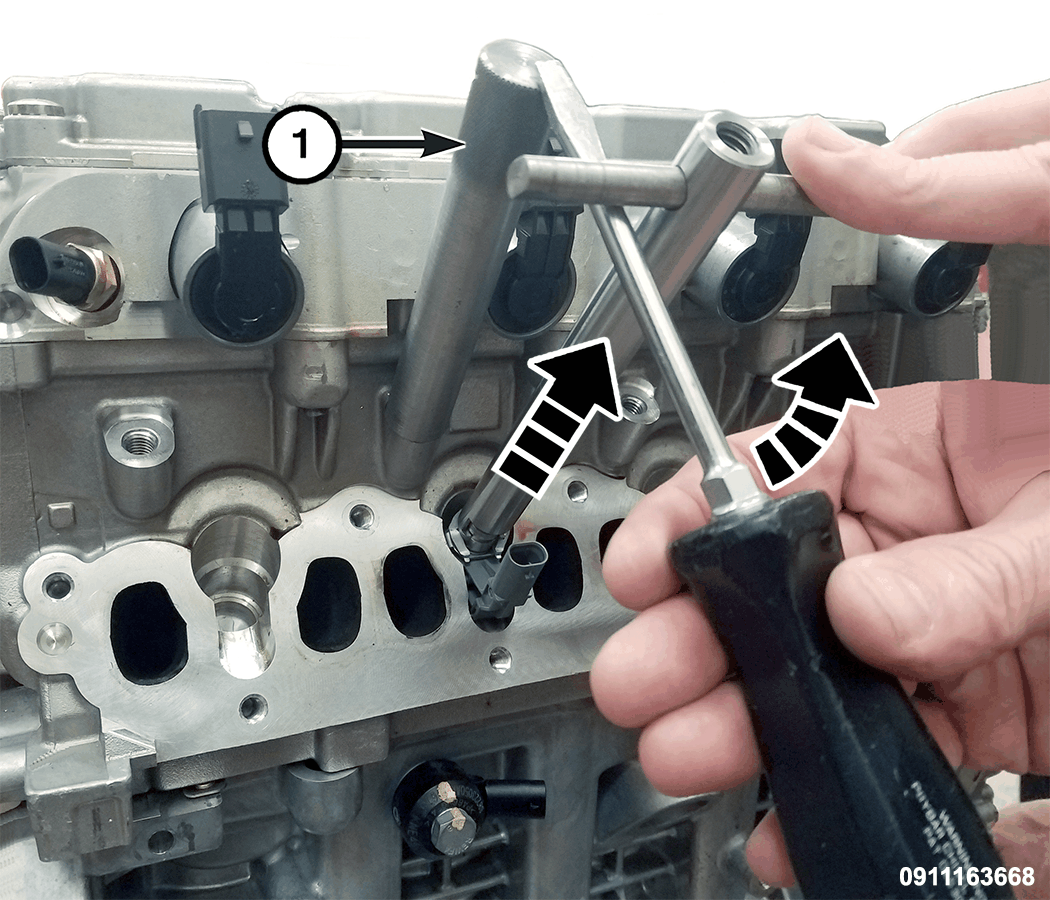

For difficult to remove injectors, install the (special tool #2066100140, Remover, Fuel Injector) (1) in the fuel rail bolt hole and lever the injector remover with a screwdriver as shown.

Courtesy of CHRYSLER GROUP, LLC
Remove the fuel injectors (1b) from the fuel rail complete with back-up rings and O-rings (1c).
If required, remove the fuel rail pressure sensor (1a).

Courtesy of CHRYSLER GROUP, LLC

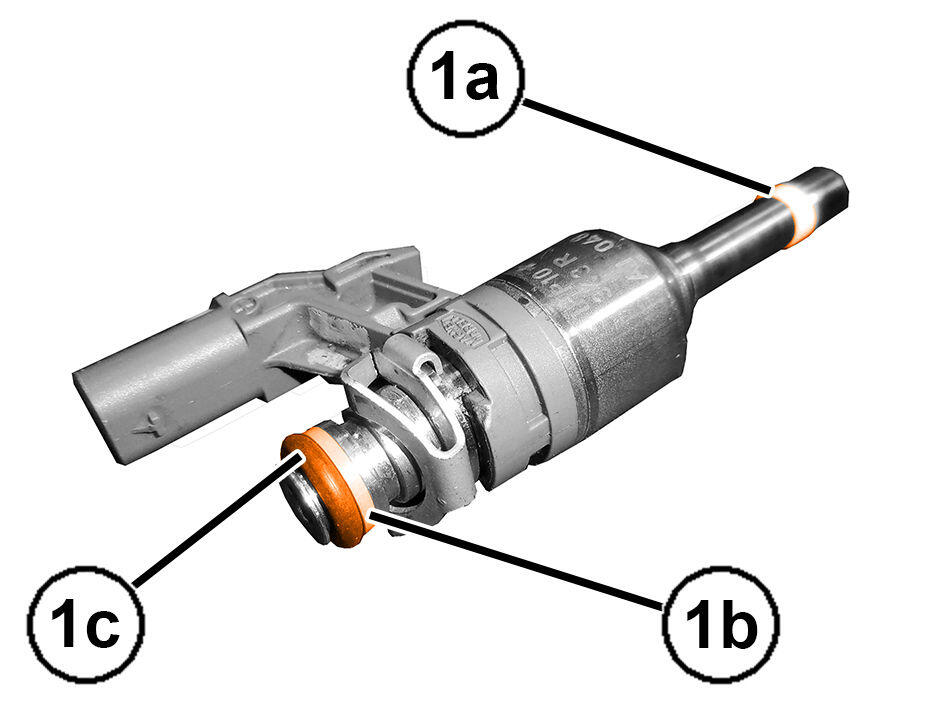

The O-rings (1c), back-up rings (1b) and injector seals (1a) must be replaced once they have been removed. The O-rings, back-up rings and injector seals should never be reused. Remove and install the rings and seals one injector at a time, using the (special tool #2072700140, Kit, Fuel Injector 1.3L) as described below.

Courtesy of CHRYSLER GROUP, LLC

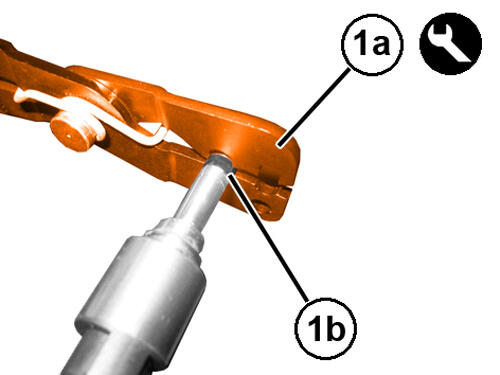

With the (special tool #2025505140, Pliers, Injector Seal Removal) (1a) partially remove the injector seal (1b).
NOTE:
Use care during this step to not damage the injector body. Select the 7.8 mm jaw size (larger hole) to score the injector seal.

Courtesy of CHRYSLER GROUP, LLC

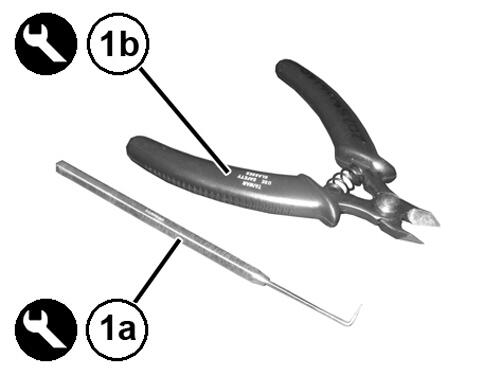

Finish removing the injector seal using the (special tool #2025504140, Pick, Injector Seal 90 Degree) (1a) and the (special tool #2025506140, Pliers, Injector Seal Side Cutter) (1b).

Courtesy of CHRYSLER GROUP, LLC

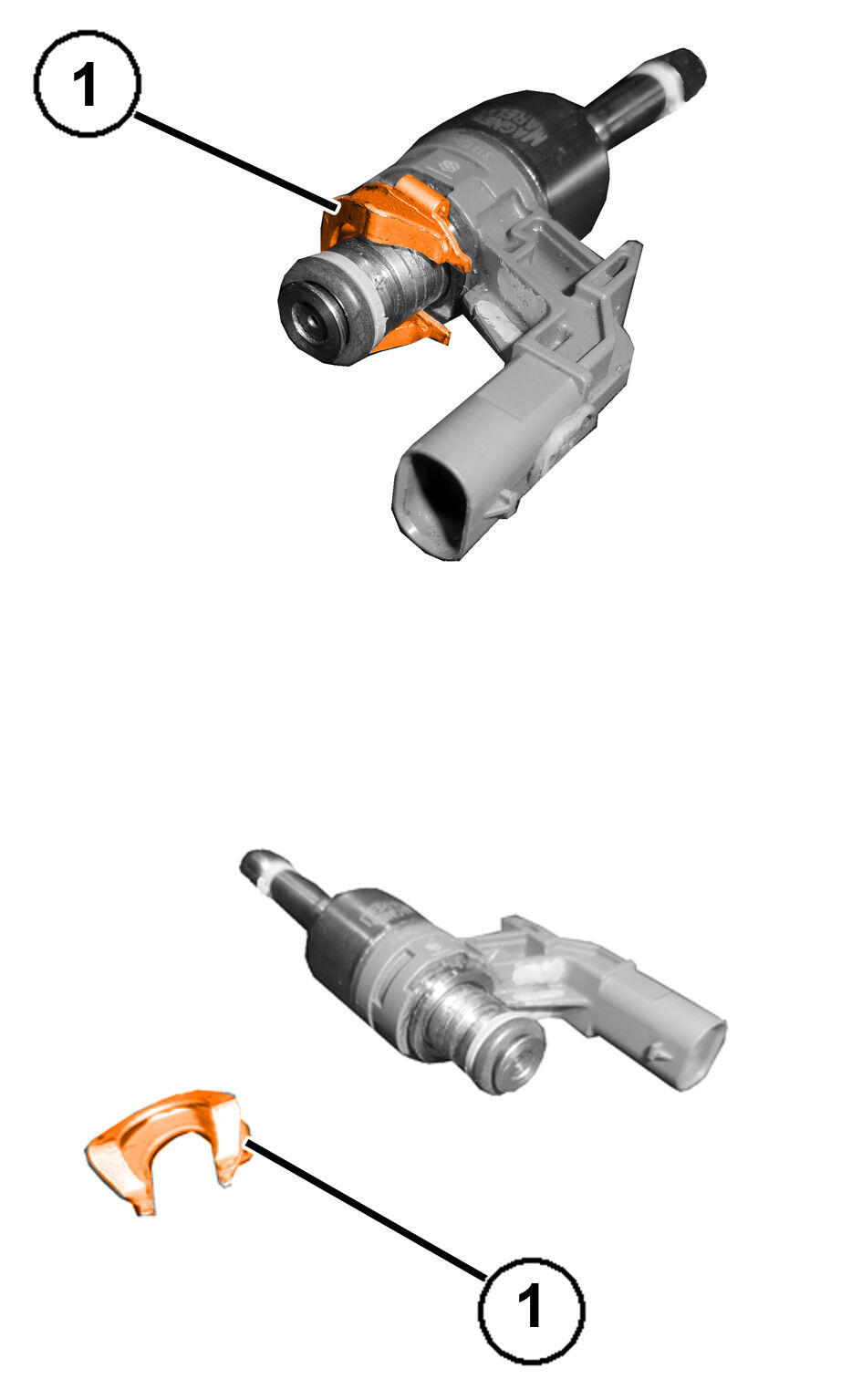

Remove the retaining clip (1).

Courtesy of CHRYSLER GROUP, LLC

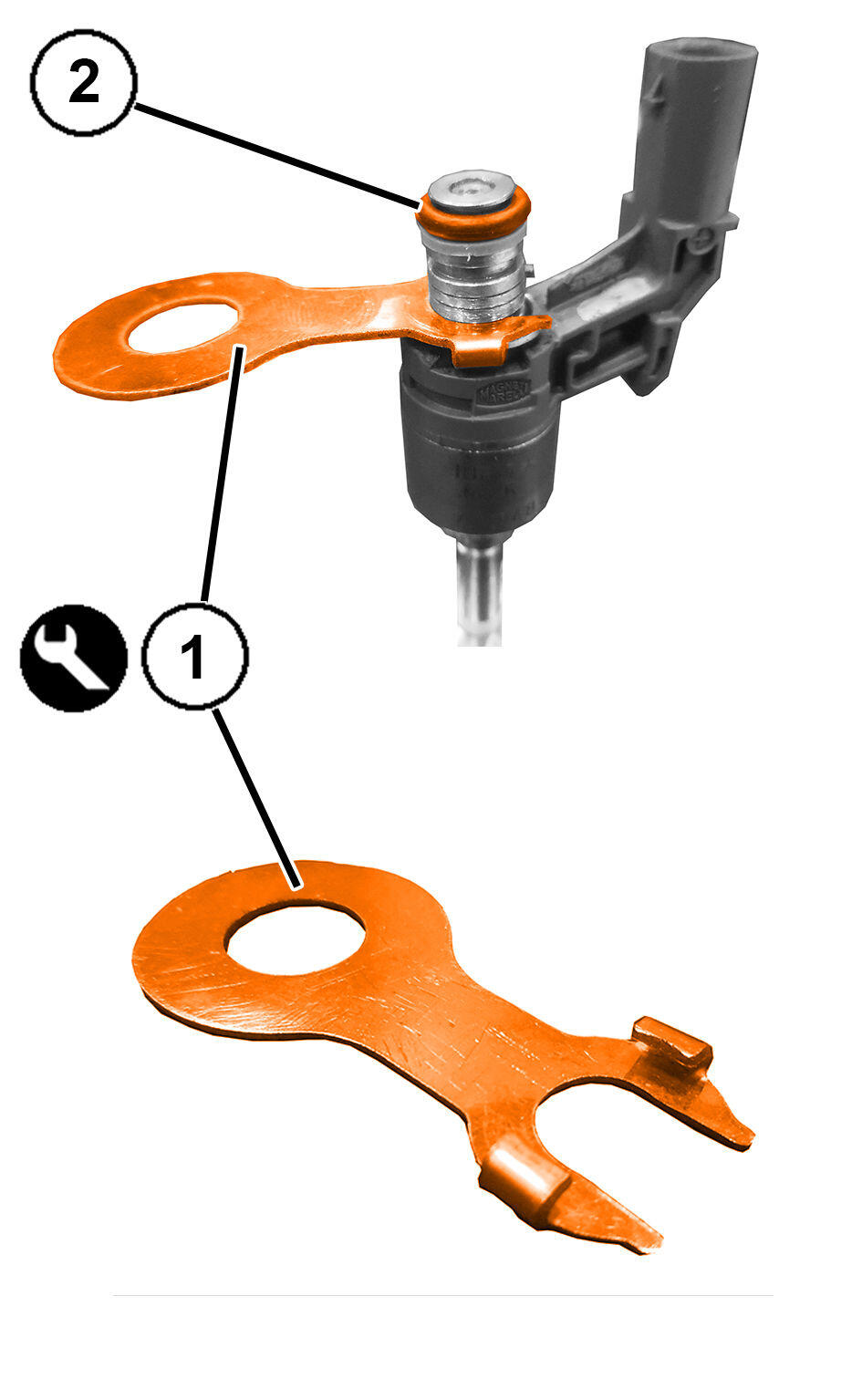

Position the Clip, Fuel Injector 2072701140 (1) from the kit on the injector.
Remove the O-ring (2).

Courtesy of CHRYSLER GROUP, LLC

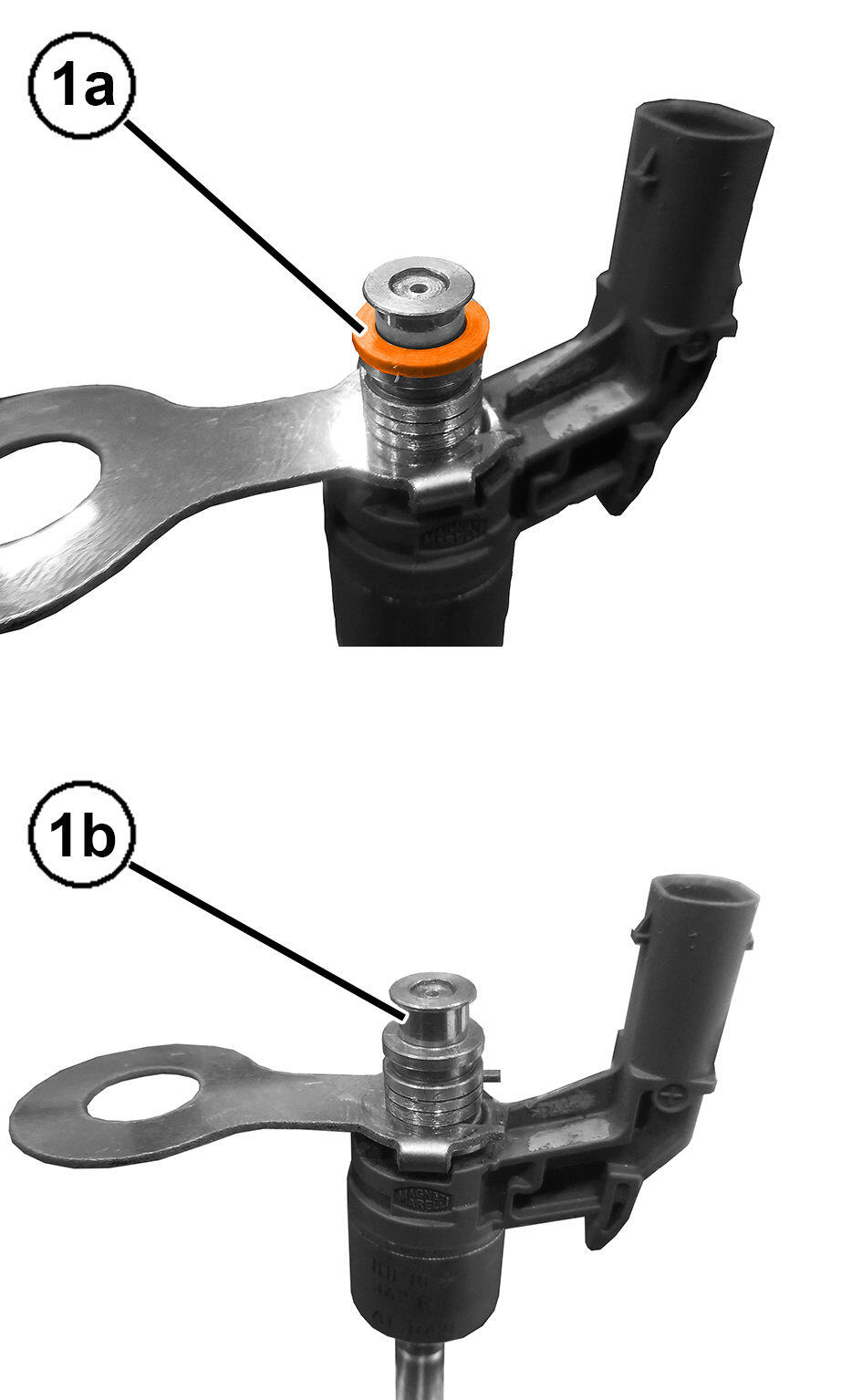

Using a suitable tool, remove the back-up ring (1a), being careful not to damage the fuel injector sealing surface (1b).
