Removal - Front Fuel Delivery Line - 1.3L

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform the fuel pressure release procedure. Refer to FUEL SYSTEM PRESSURE RELEASE  .
  2. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
  3. Remove the air inlet tube. Refer to TUBE, INTAKE AIR, REMOVAL AND INSTALLATION .
    GC0189705Courtesy of CHRYSLER GROUP, LLC

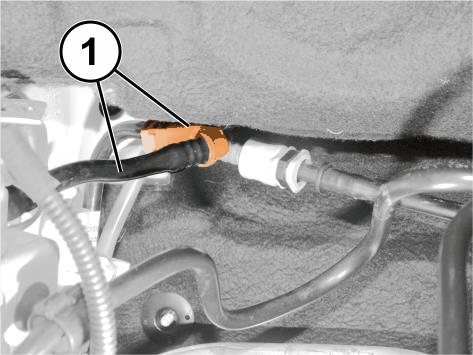

  4. Disconnect the quick coupling (1) and disengage the fuel delivery line from the rear retainer clip.
    GC0189864Courtesy of CHRYSLER GROUP, LLC

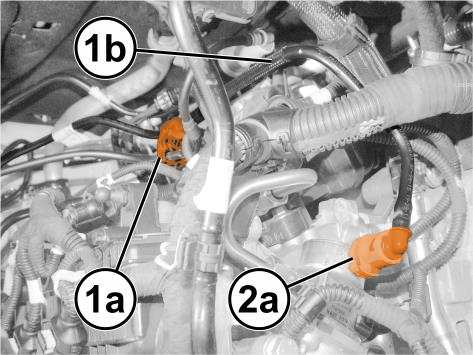

  5. Open the retaining clip (1a) and release the front fuel line (1b).
  6. Disconnect the front quick coupling (2a) and remove the front fuel line (1b).
