Rear, EMEA
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

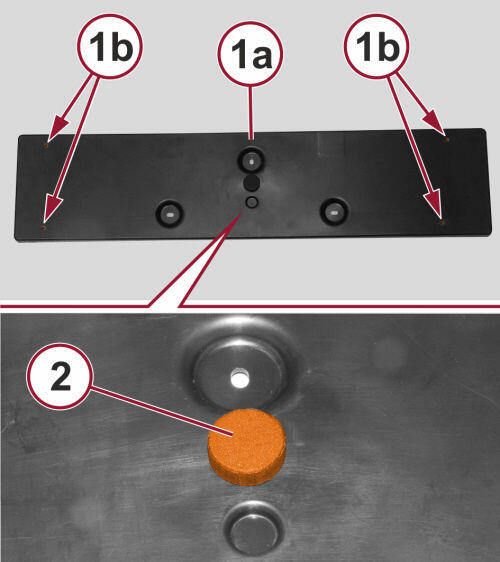

- Use a drill with a suitable bit to make holes in the marked points (1b) of the rear number plate holder (1a).
- Place the self-adhesive rubber pad (2) in position.

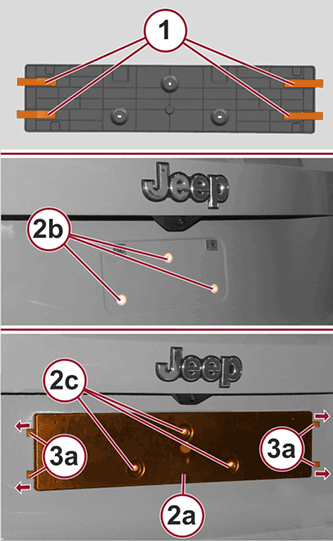

- The rear number plate holder (2a) is equipped with buffers with double-sided adhesive surface protected by a film (3a). Before fitting the number plate holder, carefully clean the area of the body concerned, using denatured ethyl alcohol (or heptane).
- Place the rear number plate holder in its housing, aligning the holes with the fastenings on the tailgate (2b), then start the mounting screws (2c) without tightening.
- Remove the adhesive buffer protective film tabs (3a) and tighten the mounting screws (2c).
- Install the rear license plate.
