Front, Trail Hawk - EMEA
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of CHRYSLER GROUP, LLC
|

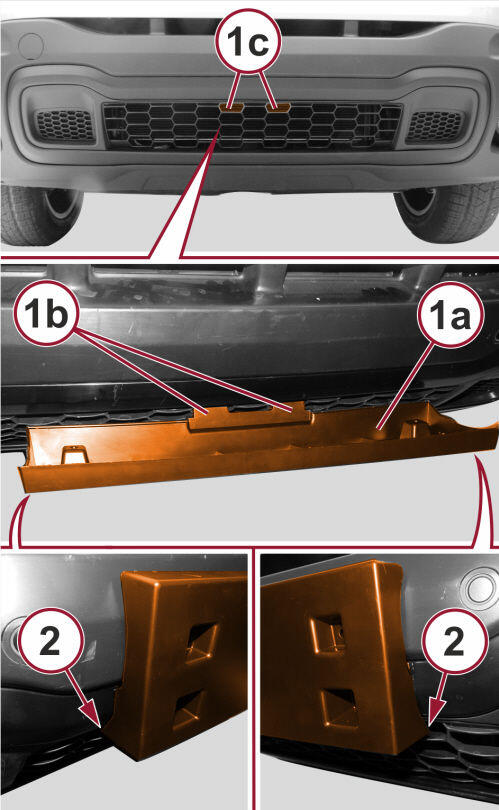

- Place the plate holder (1a) with the insert centering (1b) in the bumper, centering it with the reference (1c) on the bumper.
- Raise the number plate holder to align the side profiles (2).
 Courtesy of CHRYSLER GROUP, LLC
|

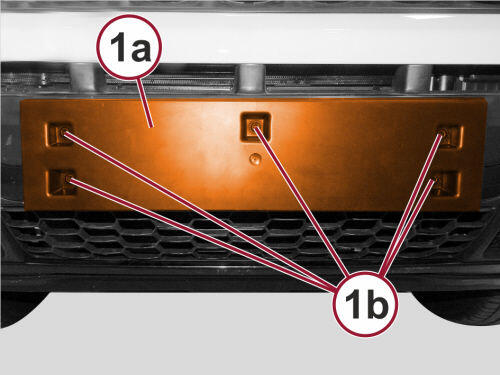

- Support the plate holder (1a) and tighten the mounting screws (1b) provided.
- Install the front license plate.
