Front, EMEA - Without Plate Holder
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

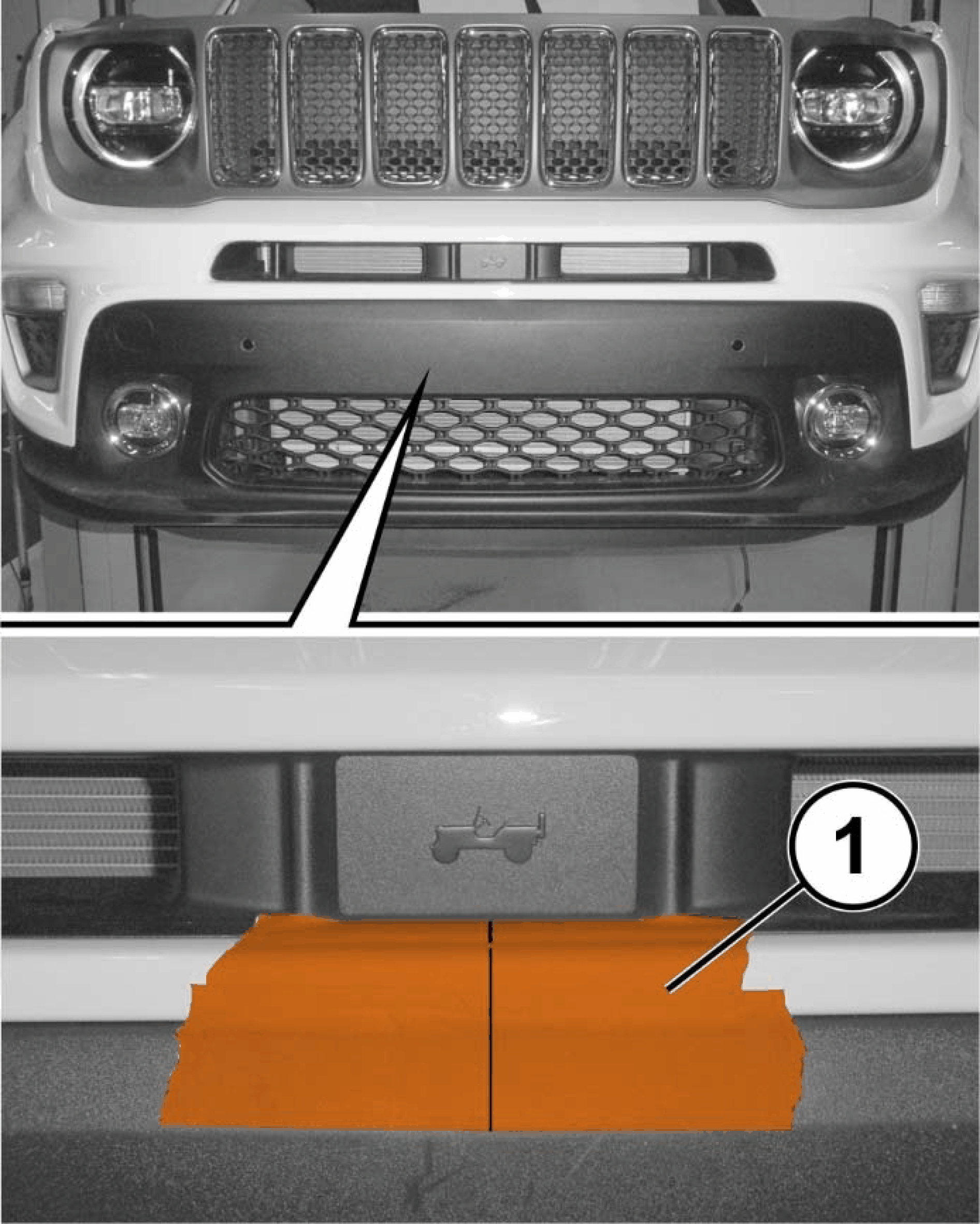

- Apply paper tape (1) to the upper center of the bumper and draw a line from the center between the two ribs on the bumper.

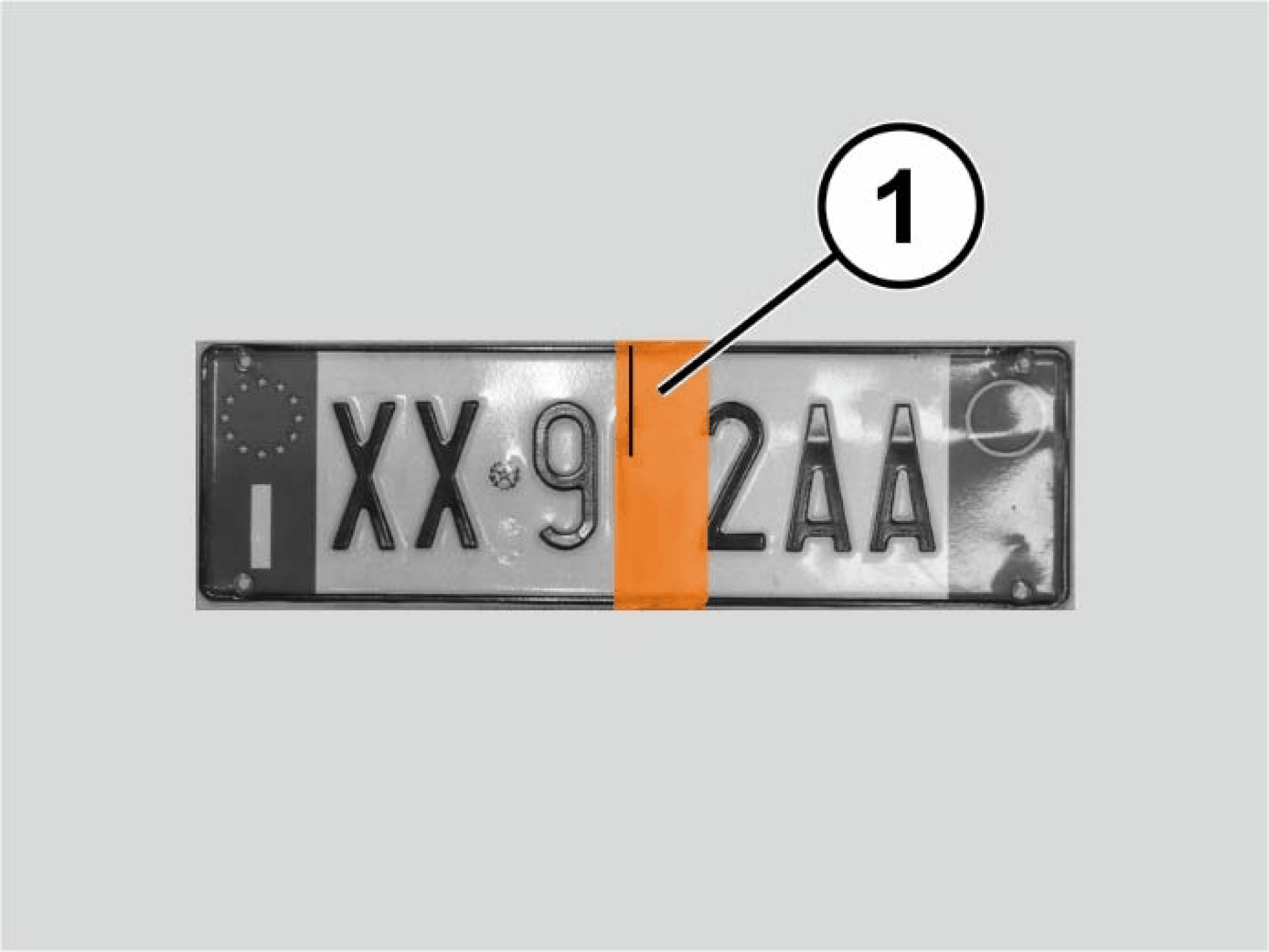

- Apply paper tape (1) to the center of the license plate to be installed and draw a line to mark the center of the license plate.

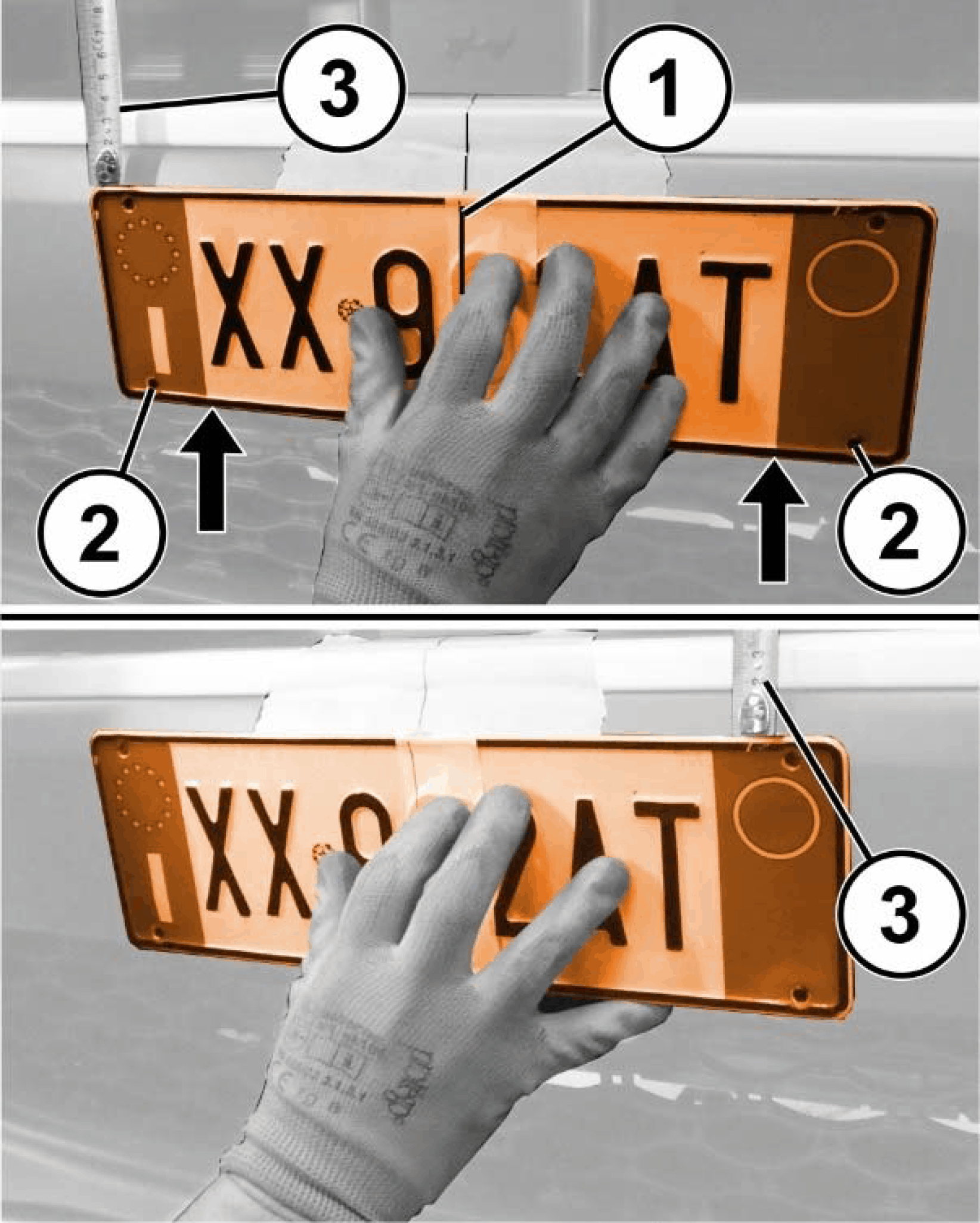

- Place the license plate on the bumper aligning the line (1) drawn on the license plate with the line drawn on the bumper.
- Align the bottom side of the license plate (2) with the top profile of the bumper grille.
- Check that the distance (3) between the top side of the license plate and a reference profile on the bumper is the same on both sides of the license plate.
- Mark the license plate mounting points (1).

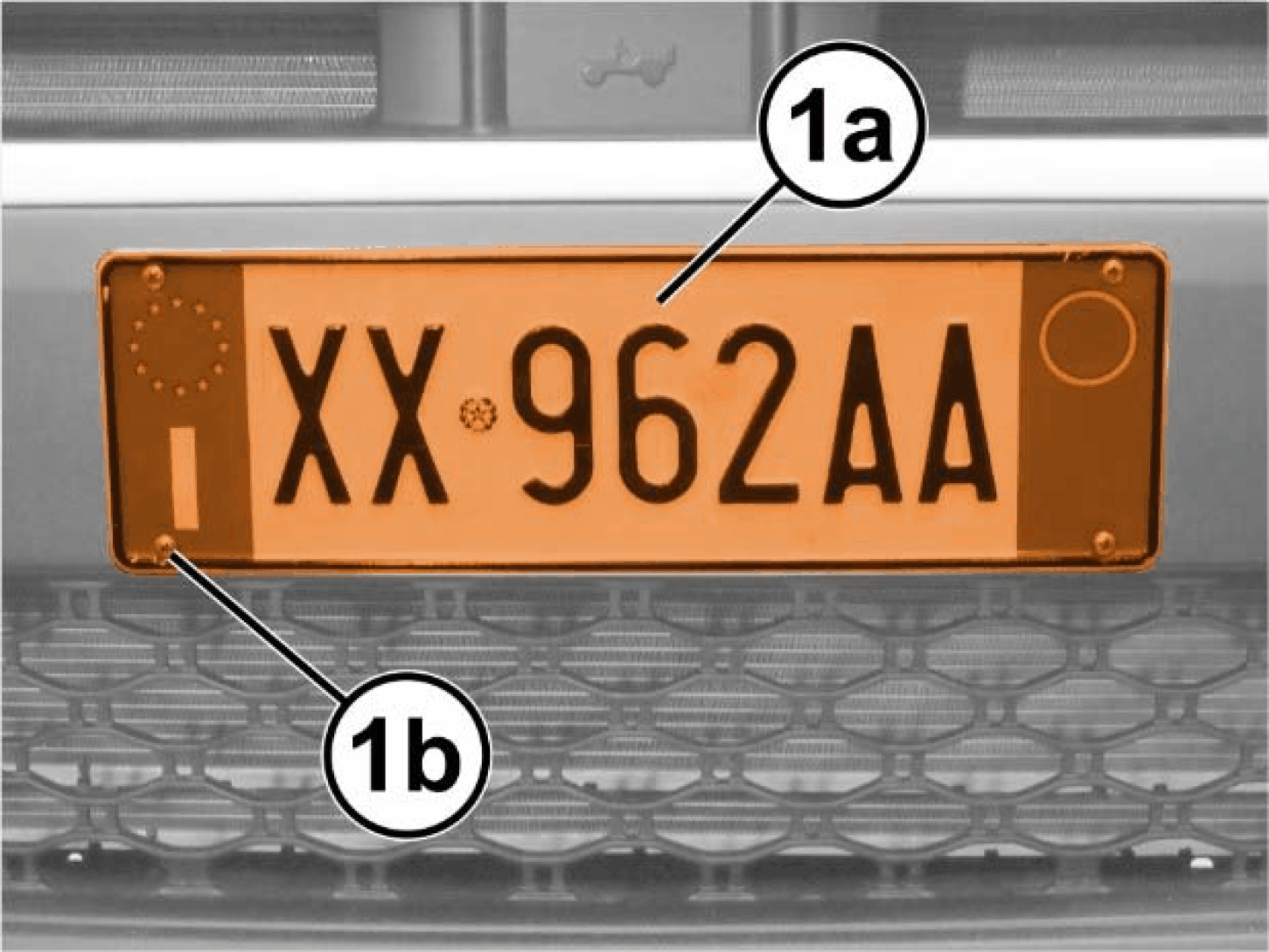

- Support the license plate (1a) and tighten the mounting screws (1b).
