120, 000KM Service (Diesel And Gas)
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
- Check tire conditions / wear and adjust pressure, check expiration date on the Tire Service Kit charge (if any).
- Check lighting system operation (headlights, turn signals, rechargeable flashlight, passenger compartment, glove box, instrument panel warning lights, etc.).
- Check and restore fluid levels (engine coolant, brake / hydraulic clutch, windshield washer, battery, etc.).
- Check emissions / exhaust gas. Refer to DIAGNOSIS AND TESTING .
- Check engine control system operation and engine oil degradation (via scan tool).
- Visually inspect conditions and integrity: exterior bodywork, underbody protection, pipes and hoses (exhaust, fuel system and brakes), rubber parts (boots, sleeves, bushings, etc.).
- Check cleanness of locks, hood and trunk lever cleanness and lubrication.
- Visually check condition and pad wear of the front disc brakes and operation.
- Visually check condition and pad wear of the rear disc brakes and operation.
- Check oil level of transfer case. Refer to STANDARD PROCEDURE .
- Check oil level of rear differential. Refer to FLUID, DIFFERENTIAL, STANDARD PROCEDURE .
- To replace oil and oil filter. Refer to
FILTER, ENGINE OIL, REMOVAL AND INSTALLATION, 1.3L
or FILTER, ENGINE OIL, REMOVAL AND INSTALLATION, 2.4L
. If the vehicle is used with an annual mileage below 10, 000 km replace engine oil and filter every year.NOTE:
In order to ensure proper functionality and avoid serious damage to the engine, it is essential: only use spark plugs specifically certified for such engines, the same type and the same brand; strictly enforce the change interval of spark plugs provided in the Service Schedule.
- Replace the spark plugs operating as described below.
- Remove the engine cover. Refer to
COVER, ENGINE, REMOVAL AND INSTALLATION, 1.3L
or COVER, ENGINE, REMOVAL AND INSTALLATION, 2.4L
.

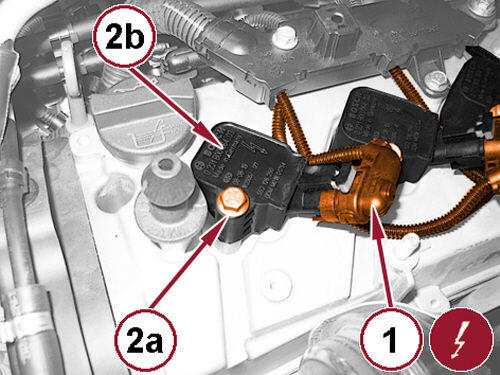

- Disconnect the electrical connections of the ignition coils (1).
- Remove the fasteners (2a) and remove the ignition coils (2b).

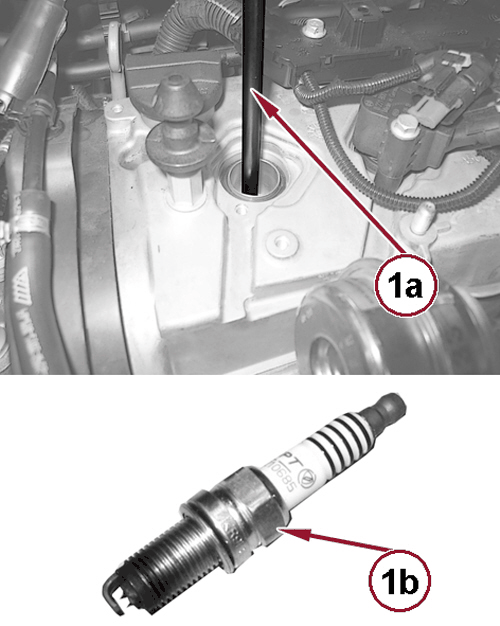

- With appropriate tool (1a), unscrew and remove the spark plug (1b) from the engine.
- Install the new engine spark plugs and tighten them to the specified torque.
- Install the ignition coils and tighten the screws to the specified torque.
- Connect the electrical connections of the ignition coils.
- Replace the engine air filter. Refer to AIR CLEANER, REMOVAL AND INSTALLATION, 1.3L or AIR CLEANER, REMOVAL AND INSTALLATION, 2.4L .
- In the case of dusty areas and / or heavy use (cold climates, urban use, long idling) is recommended to replace the drive belt / s accessories.NOTE:
Regardless of mileage, the belt should be replaced every four years.
- Replace the brake fluid. Refer to STANDARD PROCEDURE .
- Replace the cabin air filter. Refer to FILTER, CABIN AIR, REMOVAL AND INSTALLATION .
2.0L Turbo Diesel 1.6L Turbo Diesel
- Check tire conditions / wear and adjust pressure, check expiration date on the Tire Service Kit charge (if any).
- Check lighting system operation (headlights, turn signals, rechargeable flashlight, passenger compartment, glove box, instrument panel warning lights, etc.).
- Check and restore fluid levels (engine coolant, brake / hydraulic clutch, windshield washer, battery, etc.).
- Check emissions / exhaust gas. Refer to the appropriate service information .
- Check, by means of diagnostic socket, power system operation / motor control, emissions and for versions / markets, where provided, engine oil degradation.
- Check cleanness of locks, hood and trunk lever cleanness and lubrication.
- Visually check condition and pad wear of the front disc brakes and operation.
- Visually check condition and pad wear of the rear disc brakes and operation.
- In case of non-dusty areas it is recommended to replace the drive belt / s accessories.
- In case of non-dusty areas it is recommended to replace the timing belt.
- Replace the fuel filter cartridge, operating as described below. Refer to the appropriate service information .
- Position the fuel filter in vise with protective jaws.NOTE:
To avoid compromising the functionality of the new filter element, it is recommended to protect hands with suitable gloves when opening the protective and all stages of assembly.
- Remove the screws (1a), remove the cover (1b) complete with filter element (1c) and place in a suitable container.
- Remove the filter element (1a) from the cover (1b).NOTE:
To avoid compromising the functionality of the new filter element, it is recommended to protect hands with suitable gloves when opening the protective and all stages of assembly.
- Assemble by pressing the new filter element (1a) in the lid (1b) engaging the water drain line (1c) in the hole (1d) of the bleed valve.
- Check the correct position of the water presence sensor (1a) and seal ring (1b).
- Place the filter element in the housing, taking care to engage the tooth (1) with the groove of the support.
- Tighten the mounting screws on cover of fuel filter.
- Remove the fuel filter from the vise. Refer to the appropriate service information .
- If the vehicle is used in dusty conditions replace the engine air filter. Refer to AIR CLEANER, REMOVAL AND INSTALLATION, 1.3L or AIR CLEANER, REMOVAL AND INSTALLATION, 2.4L .
- If the vehicle is used in dusty conditions replace the cabin air filter. Refer to FILTER, CABIN AIR, REMOVAL AND INSTALLATION .
