Engine And DDCT Separation: Removal

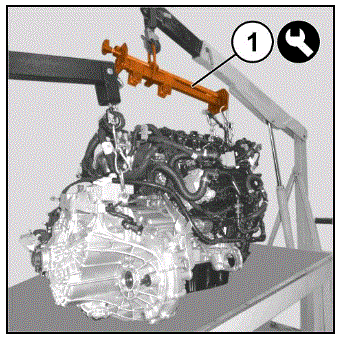

G00594635Courtesy of CHRYSLER GROUP, LLC
  1. Connect a hydraulic crane and 1871001700 load-leveling lifting sling (1) to the lifting brackets on the engine.
    GC0208287Courtesy of CHRYSLER GROUP, LLC
  2. Remove the nuts (1a) and move the control unit for the catalytic converter overtemperature warning system (1b) out of the way.

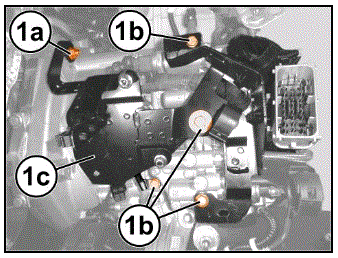

    G00594636Courtesy of CHRYSLER GROUP, LLC
  3. Remove the nut (1a) and bolts (1b), and reposition the wiring harness mounting bracket (1c).

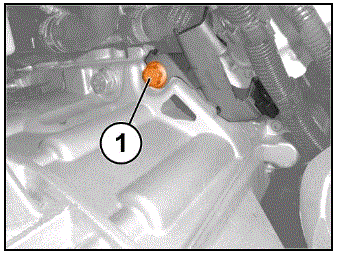

    G00594637Courtesy of CHRYSLER GROUP, LLC
  4. Remove the upper starter motor bolt (1).
    GC0208284Courtesy of CHRYSLER GROUP, LLC
  5. Open the protective cover (1a) for the starter electrical connections.
  6. Disconnect the starter motor wire harness connector (2).
  7. Remove the nut (3) and disconnect the battery positive cable from the starter motor (1b).

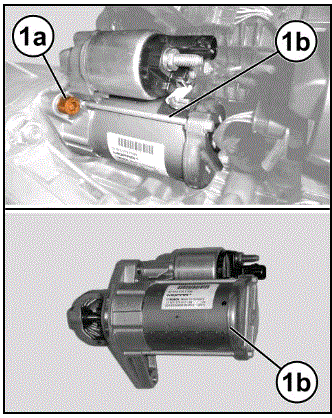

    G00594638Courtesy of CHRYSLER GROUP, LLC
  8. Remove the lower starter motor bolt (1a) and remove the starter motor (1b).
    GC0208282Courtesy of CHRYSLER GROUP, LLC
  9. Remove the nut (1a) and bolts (1b), (1c) fastening the transmission (1d) to the engine on the compressor side.

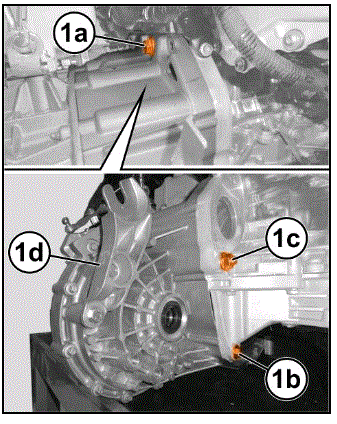

    G00594639Courtesy of CHRYSLER GROUP, LLC
  10. Remove the bolts (1a), (1b) and the nut (1c) fastening the transmission (1d) to the engine on the starter motor side.

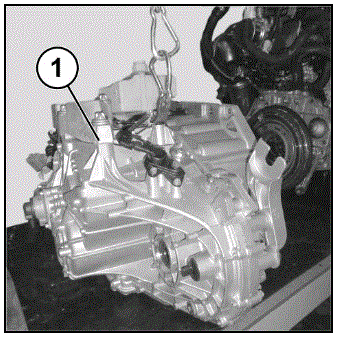

    G00594640Courtesy of CHRYSLER GROUP, LLC
  11. Remove the transmission (1) from the engine.
