Removal And Installation: Removal

  1. Remove the flexplate. Refer to FLEXPLATE, REMOVAL AND INSTALLATION  .

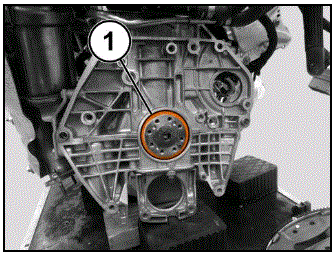

    G00594727Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    The rear crankshaft oil seal is destroyed when it is removed.

  2. Remove the rear crankshaft oil seal (1).
