Remove Cylinder Head And Oil Pan For Inspection - 1.3L

  1. Remove the engine from the vehicle and place on maintenance stand. Refer to REMOVAL AND INSTALLATION  .
    G00594644Courtesy of CHRYSLER GROUP, LLC

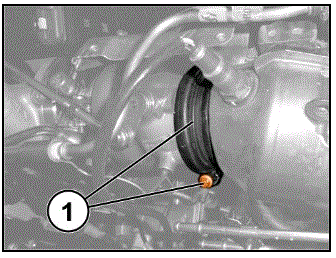

  2. Remove the catalytic converter collar bolt (1).
    G00594645Courtesy of CHRYSLER GROUP, LLC

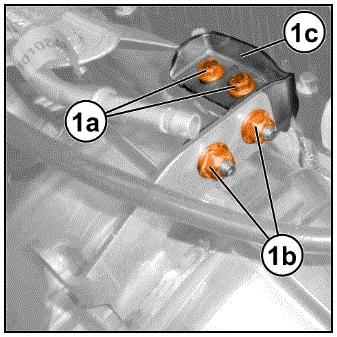

  3. Remove the bolts (1a) and the nuts (1b), and remove the upper catalytic converter mounting bracket (1c).
    GC0208029Courtesy of CHRYSLER GROUP, LLC
  4. Remove the nuts (1) from the exhaust pipe flange.
  5. Remove the bolts (2) securing the catalytic converter support bracket to the crankcase.
  6. Remove the bolts (3) from the side mounting brackets.
    G00594646Courtesy of CHRYSLER GROUP, LLC

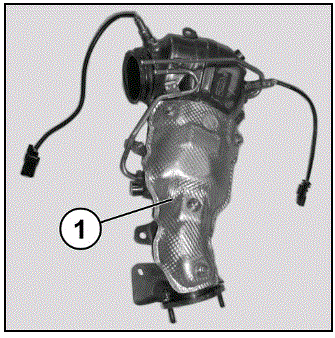

  7. Remove the catalytic converter assembly (1).
    G00594647Courtesy of CHRYSLER GROUP, LLC

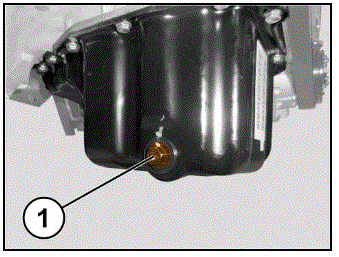

  8. Remove the plug (1) and drain the engine oil.
    G00594648Courtesy of CHRYSLER GROUP, LLC

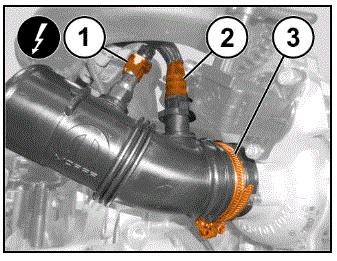

  9. Disconnect the electrical connection (1) from the turbocharger intake air temperature sensor.
  10. Disconnect the quick coupling (2) for the oil vapor pipe.
  11. Loosen the band clamp (3) and remove the turbocharger air intake pipe.
    G00594649Courtesy of CHRYSLER GROUP, LLC

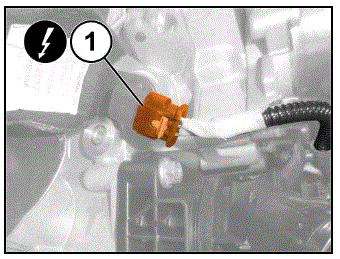

  12. Disconnect the electrical connection (1) from the Camshaft Position (CMP) sensor.
    G00594650Courtesy of CHRYSLER GROUP, LLC

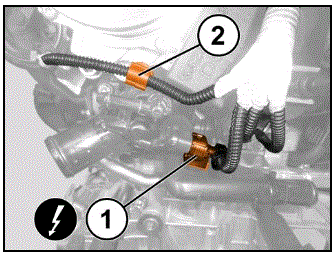

  13. Disconnect the electrical connection (1) from the engine coolant heating coil.
  14. Disengage the wiring from the retainer (2).
    GC0208200Courtesy of CHRYSLER GROUP, LLC
  15. Disconnect the electrical connection (1) from the Engine Coolant Temperature (ECT) sensor.
  16. Disconnect the electrical connection (2) from the pressure pump.
    GC0208199Courtesy of CHRYSLER GROUP, LLC
  17. Disengage the wiring from the retainer (1).
    GC0208198Courtesy of CHRYSLER GROUP, LLC
  18. Remove the bolts (1) and disconnect the ground wires.
    G00594651Courtesy of CHRYSLER GROUP, LLC

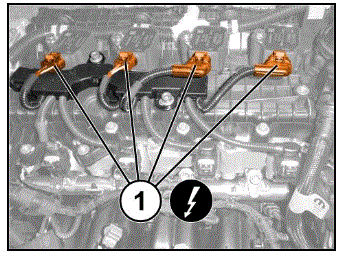

  19. Disconnect the electrical connections (1) from the ignition coils.
    G00594652Courtesy of CHRYSLER GROUP, LLC

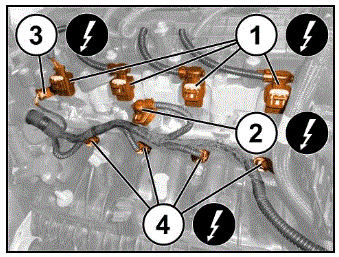

  20. Disconnect the electrical connections (1) from the Multiair actuators.
  21. Disconnect the fuel pressure sensor electrical connection (2).
  22. Disconnect the electrical connection (3) from the Multiair module oil temperature sensor.
  23. Disconnect the fuel injector electrical connections (4).
    G00594653Courtesy of CHRYSLER GROUP, LLC

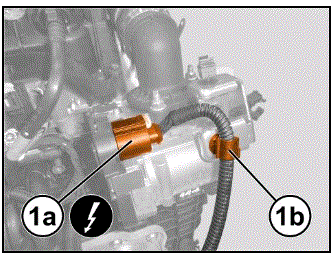

  24. Disconnect the electrical connection from the throttle body (1a) and release the wiring from the retainer (1b).
    G00594654Courtesy of CHRYSLER GROUP, LLC

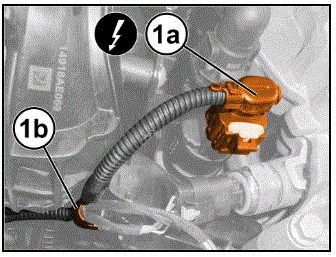

  25. Disconnect the electrical connection for the evaporative purge valve (1a) and release the wiring from the retainer (1b).
    GC0208024Courtesy of CHRYSLER GROUP, LLC
  26. Disconnect the air temperature and pressure sensor electrical connection (1).
  27. Release the wiring from the intermediate retainers.
    G00594655Courtesy of CHRYSLER GROUP, LLC

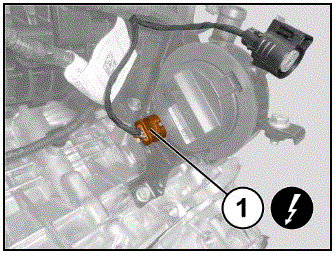

  28. Disconnect the electrical connection (1) from the auxiliary coolant pump.
    G00594656Courtesy of CHRYSLER GROUP, LLC

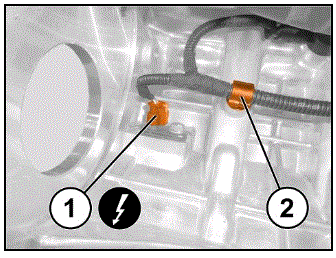

  29. Disconnect the electrical connection (1) from the Crankshaft Position (CKP) sensor.
  30. Disengage the wiring from the retainer (2).
    GC0208023Courtesy of CHRYSLER GROUP, LLC
  31. Disconnect the electrical connections (1) from the knock sensors.
  32. Disengage the wiring from the retainer (2).
    G00594657Courtesy of CHRYSLER GROUP, LLC

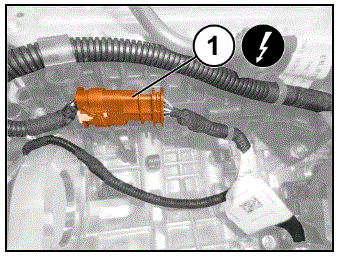

  33. Disengage the wire harness connector (1) from the retaining bracket.
    G00594658Courtesy of CHRYSLER GROUP, LLC

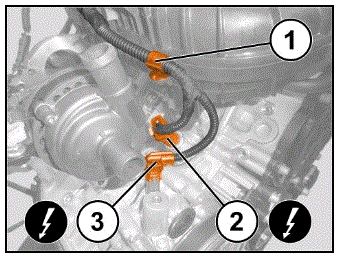

  34. Disengage the wiring from the retainers (1).
  35. Disconnect the electrical connection (2) from the oil pressure sensor.
  36. Disconnect the engine oil pump displacement control solenoid valve electrical connection (3).
    G00594659Courtesy of CHRYSLER GROUP, LLC

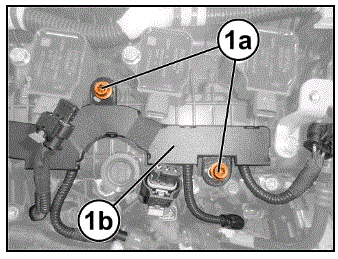

  37. Remove the bolts (1a) and release the wiring duct (1b).
    G00594660Courtesy of CHRYSLER GROUP, LLC

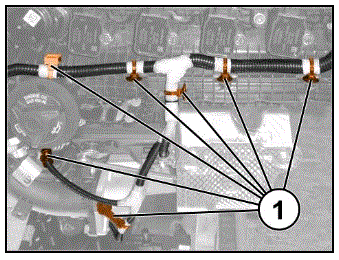

  38. Disengage the wiring from the retainers (1).
    GC0208020Courtesy of CHRYSLER GROUP, LLC
  39. Disconnect the electrical connection for the air temperature sensor (1a) and release the wiring from the retainer (1b).
  40. Disconnect the electrical connection for the air supercharging sensor (2) and release the wiring from the retainer (1b).
    G00594661Courtesy of CHRYSLER GROUP, LLC

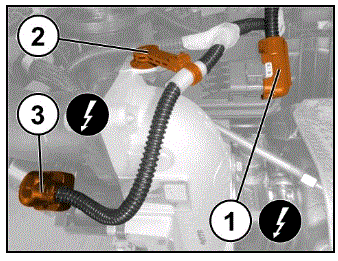

  41. Disconnect the turbocharger actuator electrical connection (1).
  42. Disengage the wiring from the retainer (2).
  43. Disconnect the electrical connection (3) from the turbocharger by-pass solenoid valve.
    G00594662Courtesy of CHRYSLER GROUP, LLC

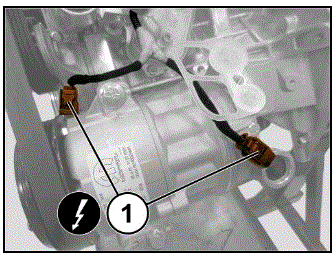

  44. Disconnect the A/C compressor electrical connections (1).
    G00594663Courtesy of CHRYSLER GROUP, LLC

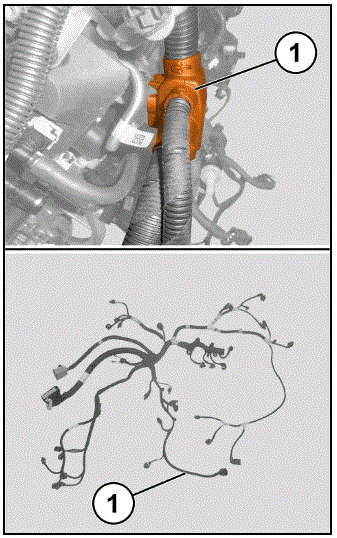

  45. Disengage the engine wire harness (1) from the retainer and remove it.
    G00594664Courtesy of CHRYSLER GROUP, LLC

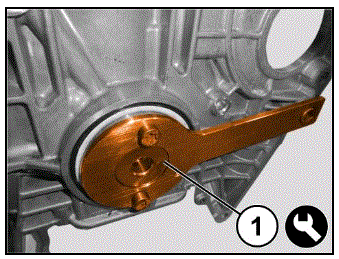

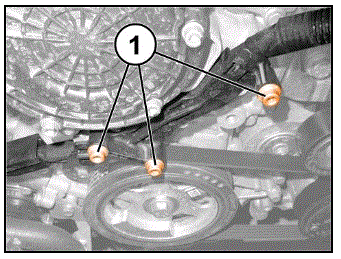

  46. Install the (special tool #2063700090, Locking, Crankshaft) timing tool (1).
    G00594665Courtesy of CHRYSLER GROUP, LLC
  47. Remove the bolts (1) and remove the wiring duct between the battery and alternator.
    G00594666Courtesy of CHRYSLER GROUP, LLC

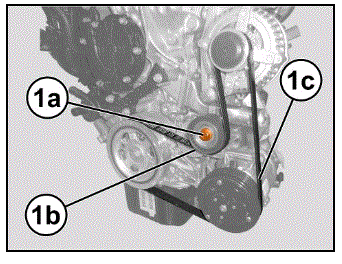

  48. Use a wrench on the bolt (1a) to rotate the belt tensioner (1b) and remove the engine accessory drive belt (1c).
    GC0208189Courtesy of CHRYSLER GROUP, LLC
  49. Remove the bolts (1a) and the alternator (1b).
    G00594667Courtesy of CHRYSLER GROUP, LLC

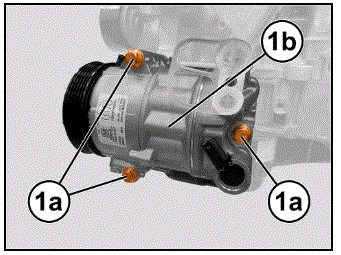

  50. Remove the bolts (1a) and the A/C compressor (1b).
    G00594668Courtesy of CHRYSLER GROUP, LLC

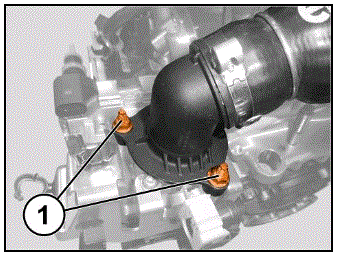

  51. Remove the nuts (1) from the throttle body end of the air pipe between the turbocharger and the throttle body.
    GC0208186Courtesy of CHRYSLER GROUP, LLC
  52. Remove the bolts (1) from the turbocharger and remove the rigid air outlet pipe from the turbocharger.
    GC0208185Courtesy of CHRYSLER GROUP, LLC
  53. Remove the bolts (1a), the nut (1b) and the turbocharger heat shield (1c).
    GC0208184Courtesy of CHRYSLER GROUP, LLC
  54. Remove the bolts (1) from the turbocharger oil supply and return pipes.
    G00594669Courtesy of CHRYSLER GROUP, LLC

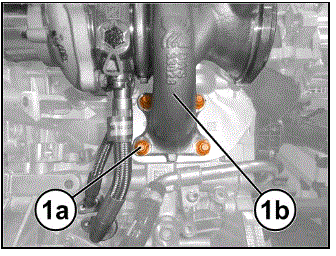

  55. Remove the nuts (1a) and remove the turbocharger (1b) with the oil supply and return pipes attached.
    G00594670Courtesy of CHRYSLER GROUP, LLC

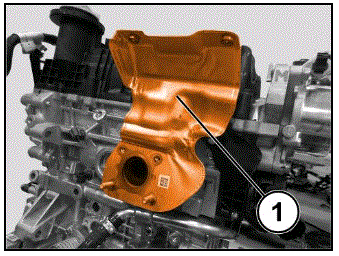

  56. Remove the turbocharger heat shield/gasket (1).
    GC0208181Courtesy of CHRYSLER GROUP, LLC
  57. Remove the bolts (1a) from the water pump coolant intake connector (1b) and remove it.
    GC0208180Courtesy of CHRYSLER GROUP, LLC
  58. Remove the engine oil cooler bolts (1).
  59. Remove the mounting bracket bolt (2).
    G00594671Courtesy of CHRYSLER GROUP, LLC

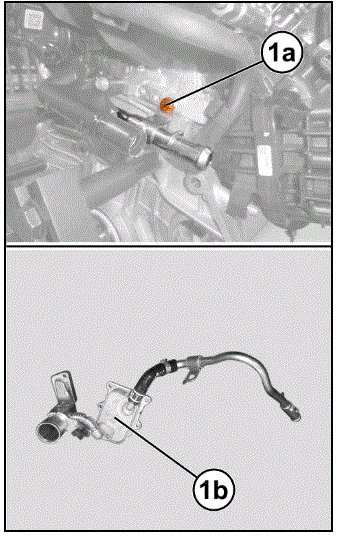

  60. Remove the intermediate bracket bolt (1a) and remove the engine oil cooler (1b) with the supply and return pipes.
    G00594672Courtesy of CHRYSLER GROUP, LLC

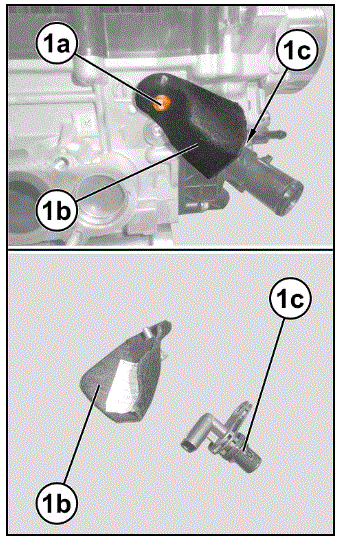

  61. Remove the bolt (1a) and remove the heat shield (1b) and CMP sensor (1c).
    G00594673Courtesy of CHRYSLER GROUP, LLC

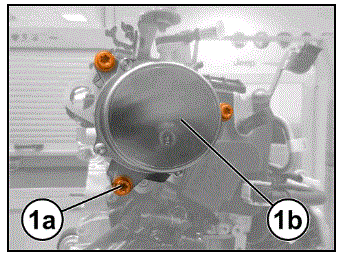

  62. Remove the bolts (1a) and the vacuum pump (1b).
    GC0208176Courtesy of CHRYSLER GROUP, LLC
  63. Remove the bolts (1a) and the thermostat (1b) complete with gasket.
    G00594674Courtesy of CHRYSLER GROUP, LLC

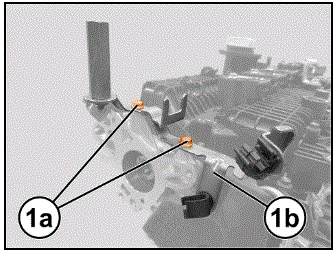

  64. Remove the bolts (1a) and the bracket (1b).
    G00594675Courtesy of CHRYSLER GROUP, LLC

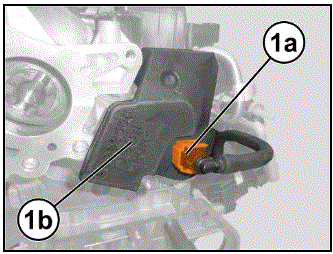

  65. Disconnect the quick coupling (1a) of the pressure pump fuel supply pipe and remove the fuel pump heat shield (1b).
    G00594676Courtesy of CHRYSLER GROUP, LLC

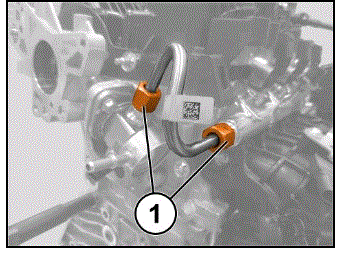

  66. Loosen the nuts (1) and remove the high pressure fuel pipe from the pressure pump and fuel rail.
    G00594677Courtesy of CHRYSLER GROUP, LLC

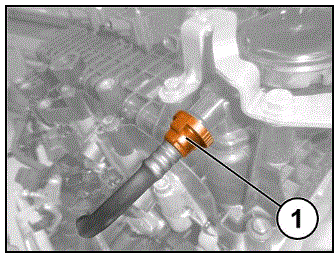

  67. Disconnect the quick coupling (1) of the oil vapor pipe from the cylinder head cover.
    GC0208017Courtesy of CHRYSLER GROUP, LLC
  68. Remove the bolts (1a) and the fuel rail (1b) with injectors.
    G00594678Courtesy of CHRYSLER GROUP, LLC

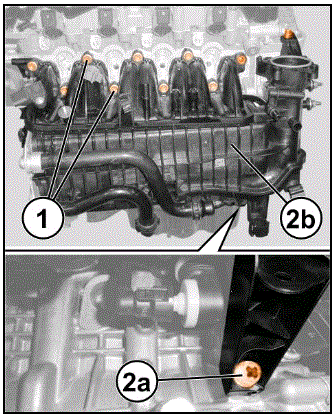

  69. Remove the upper bolts (1) from the intake manifold.
  70. Remove the lower bolt (2a) and remove the intake manifold (2b).
    G00594679Courtesy of CHRYSLER GROUP, LLC
  71. Rotate the engine 180° on the maintenance stand.

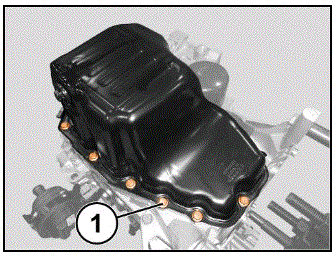

  72. Remove the oil pan bolts (1).
    G00594680Courtesy of CHRYSLER GROUP, LLC

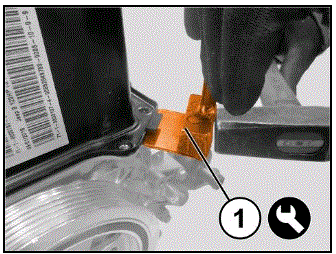

  73. Using the 1870718000 tool (1), cut the silicone sealant along the entire perimeter of the engine oil pan.
    GC0208015Courtesy of CHRYSLER GROUP, LLC
  74. Remove the bolts (1) and the windage tray.
  75. Remove the bolt (2) and remove the oil pickup tube.
    GC0189177Courtesy of CHRYSLER GROUP, LLC
  76. Install the (special tool #2063500090, Locking, Camshaft) timing tool (1) on the vacuum pump mounting surface and securely tighten the bolts.
    G00594681Courtesy of CHRYSLER GROUP, LLC

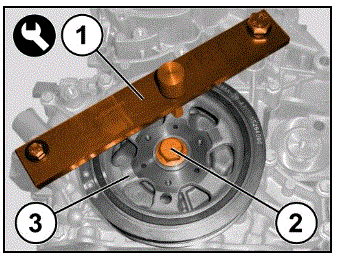

  77. Install the (special tool #2064000090, Locking, Pulley) tool (1) above the damper pulley and securely tighten the bolts.
    78. NOTE:

    The damper bolt has a left-hand thread.

  78. Remove the damper bolt (2).
  79. Remove the damper pulley (3) from the crankshaft.
    GC0188820Courtesy of CHRYSLER GROUP, LLC
  80. Remove the bolts (2) and the water pump cover (1).
    G00594682Courtesy of CHRYSLER GROUP, LLC

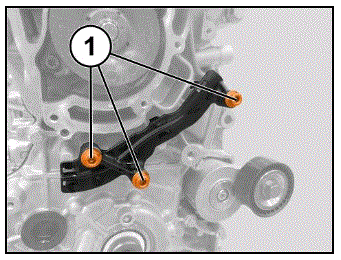

  81. Remove the bolts (1) and the duct.
    GC0208168Courtesy of CHRYSLER GROUP, LLC
  82. Remove the bolts (1) and the coolant pump.
    G00594683Courtesy of CHRYSLER GROUP, LLC

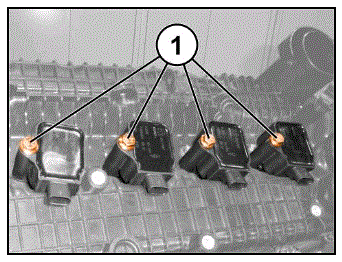

  83. Remove the bolts (1) and the ignition coils.
    GC0190342Courtesy of CHRYSLER GROUP, LLC
  84. Remove the spark plugs (1).
    G00594684Courtesy of CHRYSLER GROUP, LLC

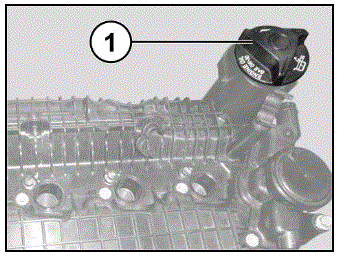

  85. Remove the engine oil fill cap (1) and dipstick.
    G00594685Courtesy of CHRYSLER GROUP, LLC

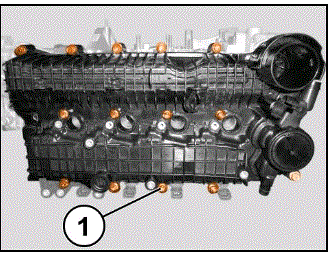

  86. Remove the bolts (1) and the cylinder head cover complete with gasket.
    GC0208010Courtesy of CHRYSLER GROUP, LLC
  87. Install the (special tool #2027207090, Tab, 90 Degree), (special tool #2020001090, Adapter, Multi Air Spring Compressor), Stand-Off Adapter 2020000091 to the (special tool #10259B, Compressor, MultiAir® Spring) (1) on the Multiair module and compress the plates.
    G00594686Courtesy of CHRYSLER GROUP, LLC

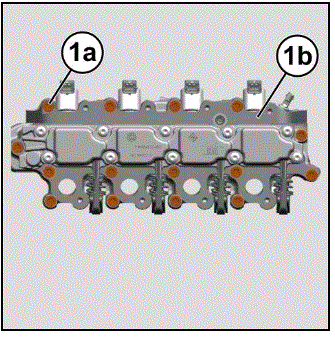

  88. Remove the bolts (1a) and the Multiair module (1b).
    GC0208008Courtesy of CHRYSLER GROUP, LLC
  89. Remove the bolts (1a) and (1b).
  90. Remove the timing cover (2).
    G00594687Courtesy of CHRYSLER GROUP, LLC

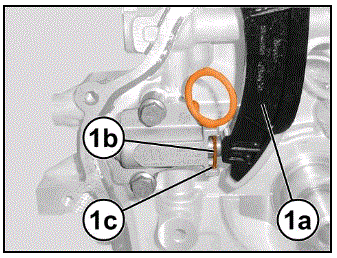

  91. Use the chain guide (1a) to push in the tensioner piston and insert a suitable pin (1b) in the hole provided (1c).
    G00594688Courtesy of CHRYSLER GROUP, LLC

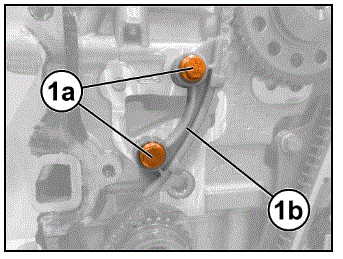

  92. Remove the bolts (1a) and the timing chain guide (1b).
    GC0208007Courtesy of CHRYSLER GROUP, LLC
  93. Remove the crankshaft sprocket and the timing chain.
  94. Remove the bolts (1a) and the camshaft caps (1b).
  95. Remove the rear camshaft cap (2).
  96. Remove the camshaft (3).
    GC0208006Courtesy of CHRYSLER GROUP, LLC
  97. Remove the hydraulic tappets (1).
    G00594689Courtesy of CHRYSLER GROUP, LLC

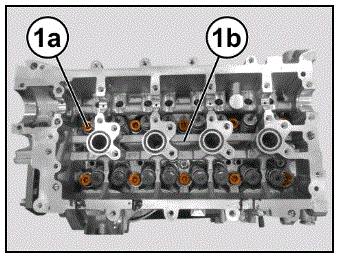

  98. Remove the bolts (1a) and remove the complete cylinder head (1b).
