Removal And Installation: Removal

  1. Disassemble the cylinder head to remove the valves. Refer to CYLINDER HEAD, DISASSEMBLY AND ASSEMBLY .

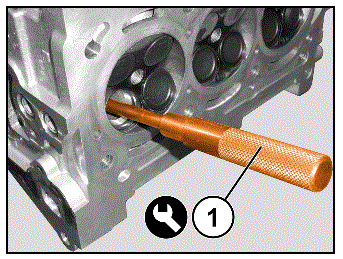

    G00594723Courtesy of CHRYSLER GROUP, LLC
  2. Remove the valve guides using the 1871008500 tool (1).
  3. Measure the valve guide bore and check that it is within the specified values. Refer to SPECIFICATIONS  .
  4. The valve guides are supplied by Spare Parts in oversized outside diameters of +0.05 mm, +0.10 mm and +0.25 mm.
  5. Check the measurement of the new valve guide.
  6. If necessary, ream the valve guide bore to the next oversize diameter.
  7. Make a note of the measurement of the valve guide bore after reaming.
  8. Verify that the interference fit between the valve guide and the valve guide bore in the cylinder head is within the specified values. Refer to SPECIFICATIONS  .
