Disassembly And Assembly: Disassembly

  1. Remove the cylinder head. Refer to CYLINDER HEAD, REMOVAL AND INSTALLATION  .
    GC0208116Courtesy of CHRYSLER GROUP, LLC
  2. Install the Cylinder Head Overhaul Support 1860470000 (1) to the turbocharger mounting studs on the cylinder head.
    G00594712Courtesy of CHRYSLER GROUP, LLC

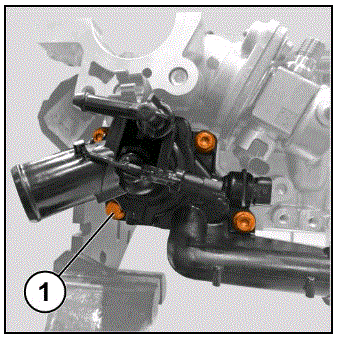

  3. Remove the bolts (1) and the thermostat.
    G00594713Courtesy of CHRYSLER GROUP, LLC

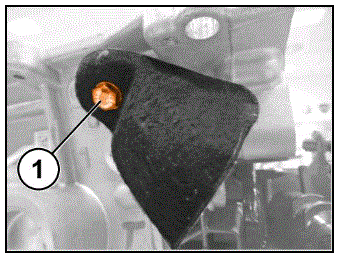

  4. Remove the bolt (1) and the camshaft position (CMP) sensor heat shield.
    GC0208113Courtesy of CHRYSLER GROUP, LLC
  5. Remove the CMP sensor (1).
    GC0208112Courtesy of CHRYSLER GROUP, LLC
  6. Remove the bolts (1) and remove the high pressure fuel pump complete with roller tappet.
    G00594714Courtesy of CHRYSLER GROUP, LLC

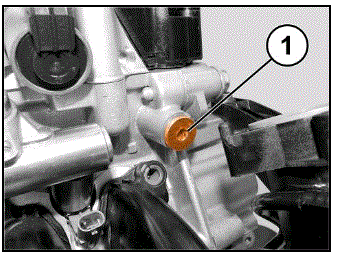

  7. Remove the Multiair actuator oil supply filter (1).
  8. Remove the four spark plugs.
