Removal And Installation: Removal

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  3. Remove the cylinder head cover. Refer to COVER(S), CYLINDER HEAD, REMOVAL AND INSTALLATION  .
  4. Remove the vacuum pump. Refer to PUMP, VACUUM, REMOVAL AND INSTALLATION  .
  5. Remove the right front splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .
  6. Remove the accessory drive belt and vibration damper. Refer to DAMPER, VIBRATION, REMOVAL AND INSTALLATION  .
    G00594722Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    The coils of the springs must not be compressed and packed together, there must remain a gap between them to avoid exceeding the maximum permissible force.

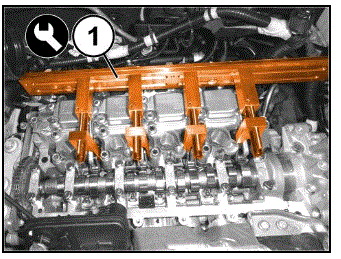

  7. Assemble the (special tool #2027207090, Tab, 90 Degree) and (special tool #2020001090, Adapter, Multi Air Spring Compressor) to the (special tool #10259B, Compressor, MultiAir® Spring).
  8. Position the tools (1) and tighten the screws to compress the springs on the variable valve actuation assembly (VVAA).
    GC0189532Courtesy of CHRYSLER GROUP, LLC
  9. Remove the (special tool #2064000090, Locking, Pulley) tool used to lock the vibration damper.
  10. Remove the inspection cap (1) from the timing cover.
    GC0190034Courtesy of CHRYSLER GROUP, LLC
  11. Remove the (special tool #2063500090, Locking, Camshaft) tool from the vacuum pump mounting surface.
  12. Remove the bolts (1a) and remove camshaft bearing caps 1 through 5 (1b).
    GC0189206Courtesy of CHRYSLER GROUP, LLC
  13. With the help of an assistant, using a suitable tool, relieve the tension of the timing chain tensioner (1) through the inspection hole of the timing cover.
    GC0190179Courtesy of CHRYSLER GROUP, LLC
  14. Remove the bolts (1a) and remove the rear camshaft bearing cap (1b).
    GC0189883Courtesy of CHRYSLER GROUP, LLC
  15. Lift the camshaft while guiding the timing chain (1) off of the camshaft sprocket.
    GC0208089Courtesy of CHRYSLER GROUP, LLC
  16. Remove the camshaft (1) from the cylinder head.
    GC0189808Courtesy of CHRYSLER GROUP, LLC
  17. Support the timing chain (1) to prevent it from falling into the engine.
    GC0189362Courtesy of CHRYSLER GROUP, LLC
  18. Remove the residual sealant from the cylinder head (1a) and from the rear camshaft bearing cap (1b). Check the integrity of the centering bushings (1c).
