Cover, Sunroof Mechanism: Installation

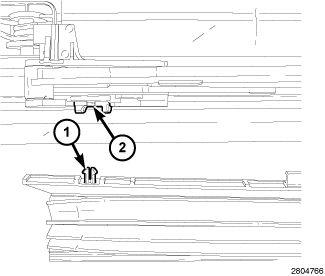

GC0145979Courtesy of CHRYSLER GROUP, LLC
  1. Position the mechanism cover into the rear slot of the mechanism and push rearward and down until fully seated.
  2. Push front tabs (1) on mechanism cover into the guide (2) until seated fully.
    GC0080818Courtesy of CHRYSLER GROUP, LLC
  3. Slide the upper portion of the cover (2) into the retaining tabs on the glass panel (1) until fully seated.
