Seat, Rear: Removal

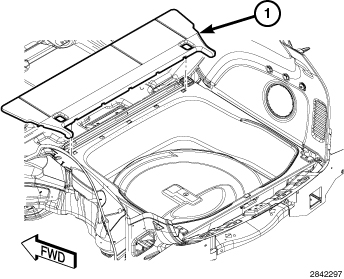

GC0146445Courtesy of CHRYSLER GROUP, LLC
  1. Using a trim stick or equivalent, remove the load floor gap hider (1).

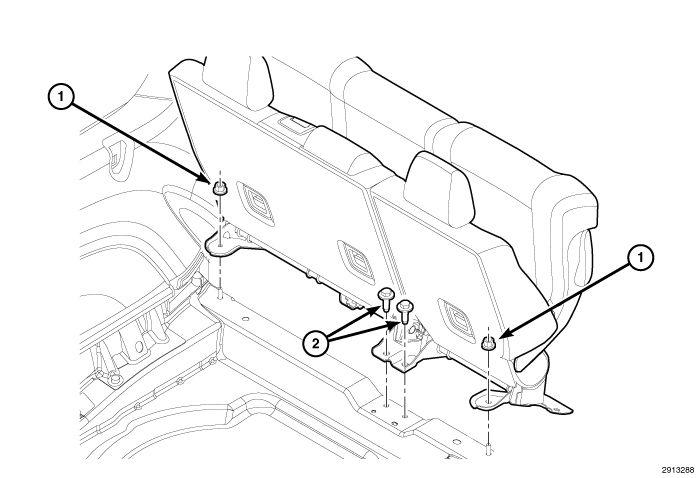

    GC0145788Courtesy of CHRYSLER GROUP, LLC
  2. Fold the rear seat backs down and remove the rear bolts (2) and nuts (1).

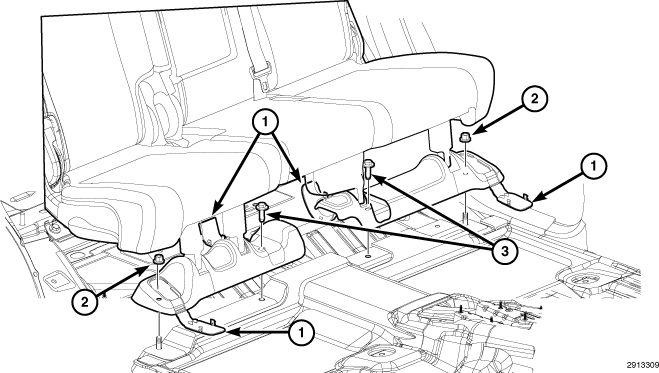

    GC0145789Courtesy of CHRYSLER GROUP, LLC
  3. Fold the seat backs up.
  4. Open the fasteners covers (1).
  5. Remove the outer nuts (2) and inner bolts (3).

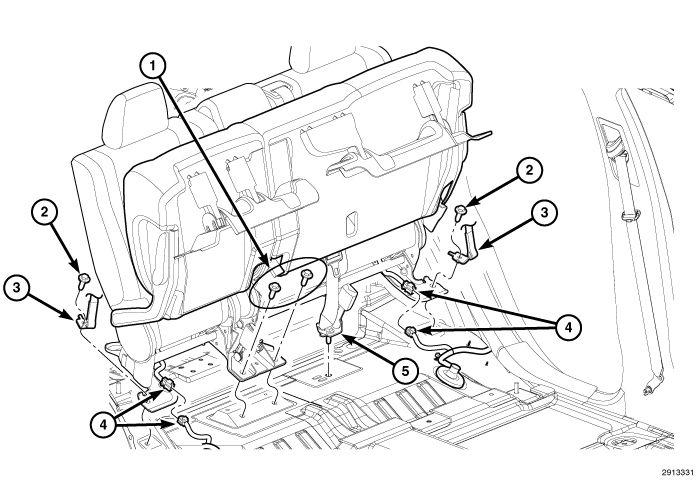

    GC0145790Courtesy of CHRYSLER GROUP, LLC
  6. Lift the seat cushion assemblies up and disconnect the electrical connectors (4), if equipped.
  7. Remove the inner bolts (1).
  8. Remove the bolt and separate the center buckle assembly (5).
  9. Remove the outer bolts (2) and remove the seat from the vehicle.
