Plate, Scuff, Liftgate: Removal

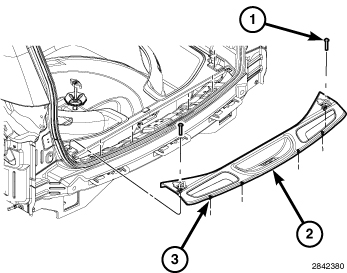

GC0146446Courtesy of CHRYSLER GROUP, LLC
  1. Remove the screws (1).
  2. Using trim stick (special tool #C-4755, Trim Stick) or equivalent, separate the retaining clips (3) and remove the liftgate scuff plate (2).
