Molding, Door Belt, Outer: Removal

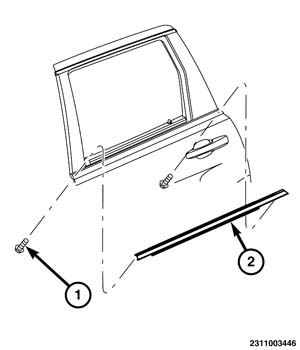

GC0155001Courtesy of CHRYSLER GROUP, LLC
  1. Open the door.
  2. Remove the screws (1).
  3. Starting from the rear of the door, carefully lift the belt molding (2) upward and disengage the inner portion of the molding from the tabs on the door.
