Molding, Door Belt, Outer: Removal

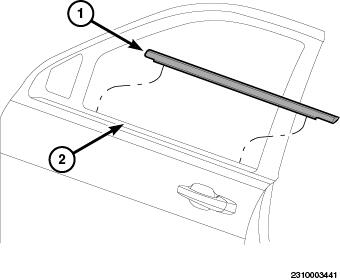

- Remove the screw (2) from the rear of the outer belt molding (1).
- Starting from the rear of the door, carefully lift the belt molding upward and disengage the inner portion of the molding from the tabs on the door.
- Pull the molding rearward to disengage the molding from the outside mirror.
- Remove the belt molding from the door.
