Deflector, Wind: Removal

Fully open sunshade and sunroof glass panel.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Right side shown in illustration, left similar.

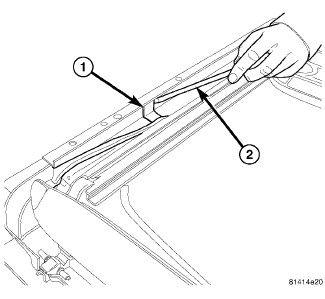

Using a small flat bladed tool (2) or equivalent, release both hinges (1) from the track by prying in the inward direction.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Right side shown in illustration, left similar.

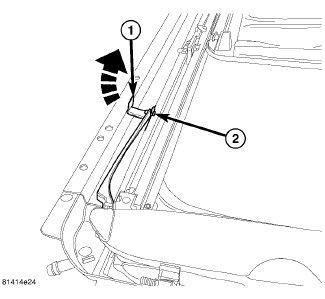

Rotate the hinge feet (1) up and out of the frame (2).
Remove four fasteners from the front of wind deflector and remove the wind deflector.
