Deflector, Wind: Removal

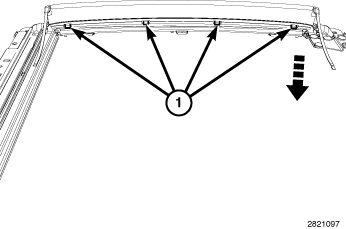

GC0144344Courtesy of CHRYSLER GROUP, LLC
  1. Move the front glass into the full open position.
  2. Push down the lower rod to remove from the under plastic clips (1).

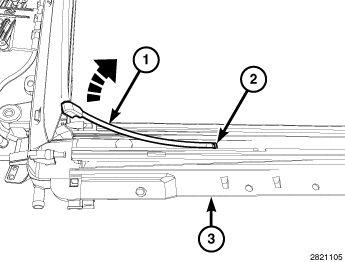

    GC0144345Courtesy of CHRYSLER GROUP, LLC
  3. Rotate the deflector up and remove the spring arms (1) from the slots (2) in the frame (3).
