Frame, Seat Back, Rear: Removal

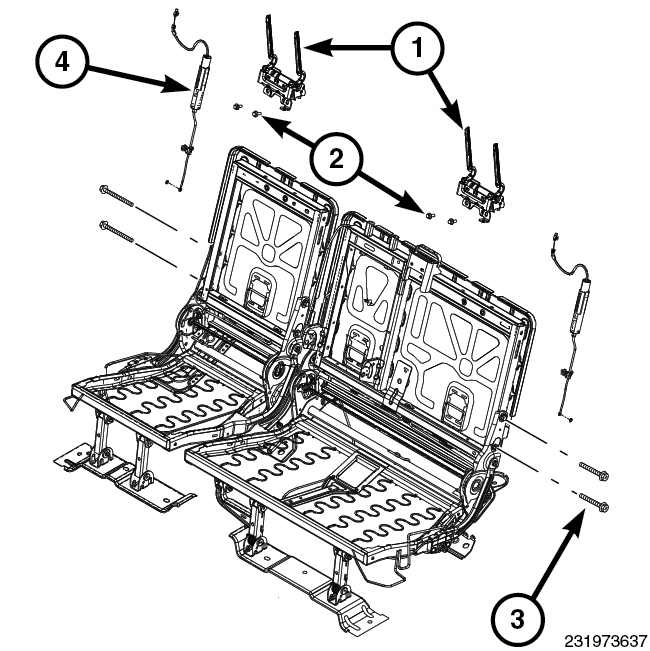

GC0155486Courtesy of CHRYSLER GROUP, LLC
  1. Remove the rear seat back cover. Refer to COVER, SEAT BACK, REAR, REMOVAL  .
  2. Remove the bolts (2) and remove the headrest assemblies (1).
  3. Remove the headrest release cables (4).
