Cover, Seat Cushion, Front: Removal
- Before proceeding with the following repair procedure, review all warnings and cautions. Refer to SEATS, WARNING .
- Remove the front seat. Refer to SEAT, FRONT, REMOVAL .

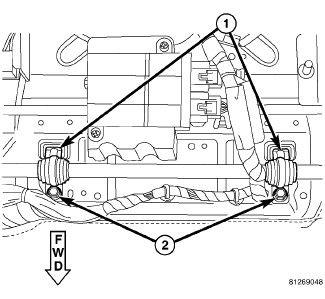

- Remove the bolts (2) and the clamps (1) and remove the seat cushion.
- Disconnect the electrical connectors, if equipped.

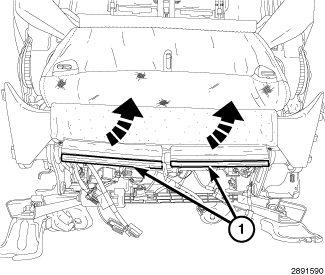

- Separate the rear J-straps (1) and seat cushion cover and foam.

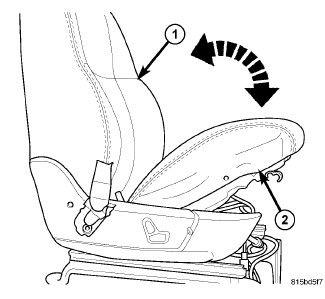

- Lift the front of the seat cushion (2) up and slide out from under the seat back cushion (1).

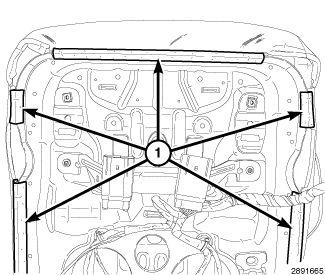

- Release the j-straps (1) and separate the seat cushion assembly from the seat pan.
- Unwrap the seat cushion cover from the seat cushion foam and release the hook and loop fasteners.
- While pulling down on the side of the seat cushion foam (3), slide out the retaining clips to separate the cover (1) from the foam.
