Seat Back

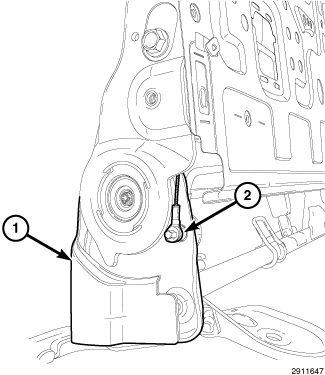

GC0145772Courtesy of CHRYSLER GROUP, LLC
  1. Remove the rear seat assembly. Refer to SEAT, FRONT, REMOVAL .
  2. Remove the recliner handle.
  3. Remove the side cover.
  4. Disconnect the recliner cable from arm.
  5. Disconnect the electrical connectors, if equipped.
    GC0145773Courtesy of CHRYSLER GROUP, LLC
  6. Remove the seat back pivot bolts.
